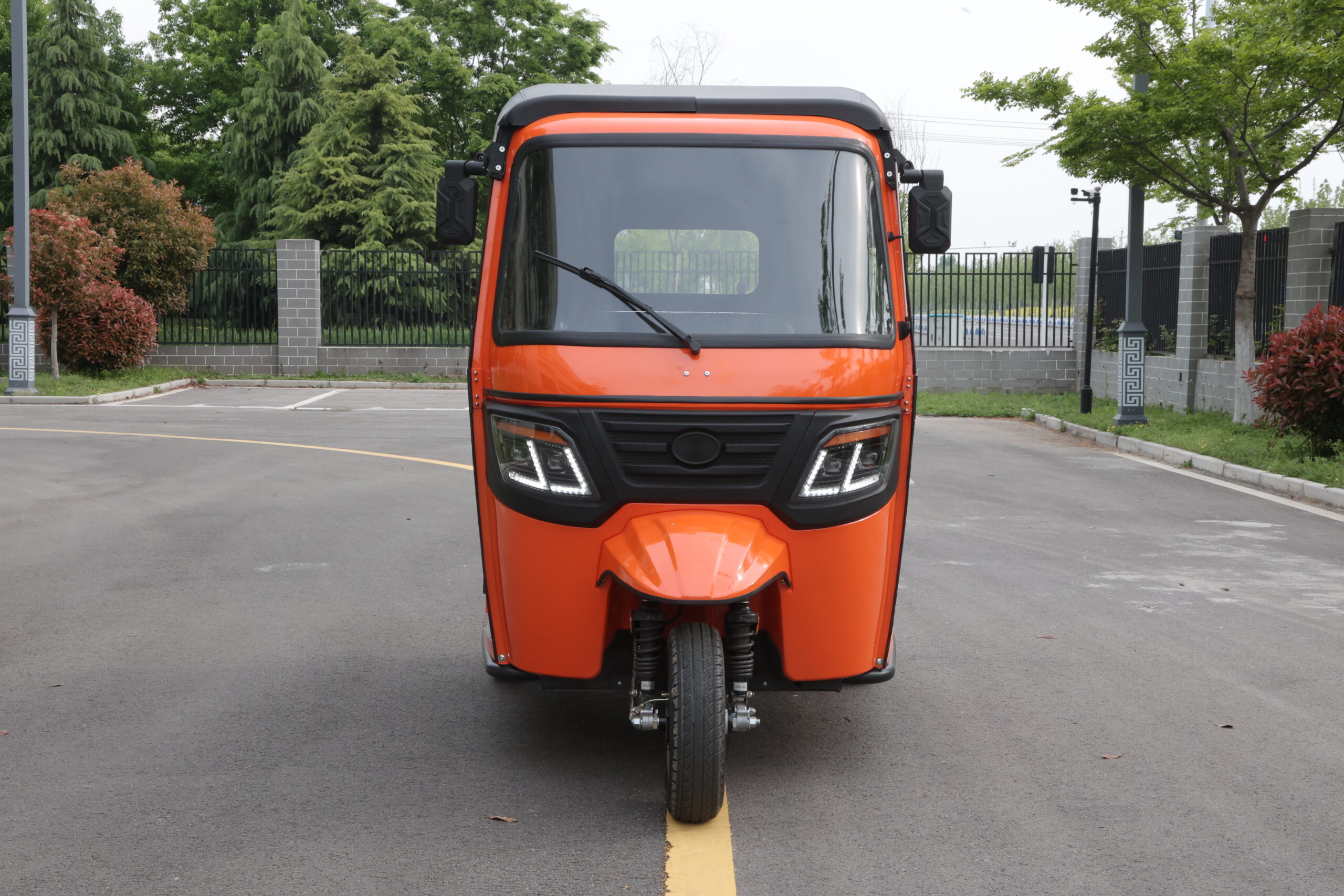

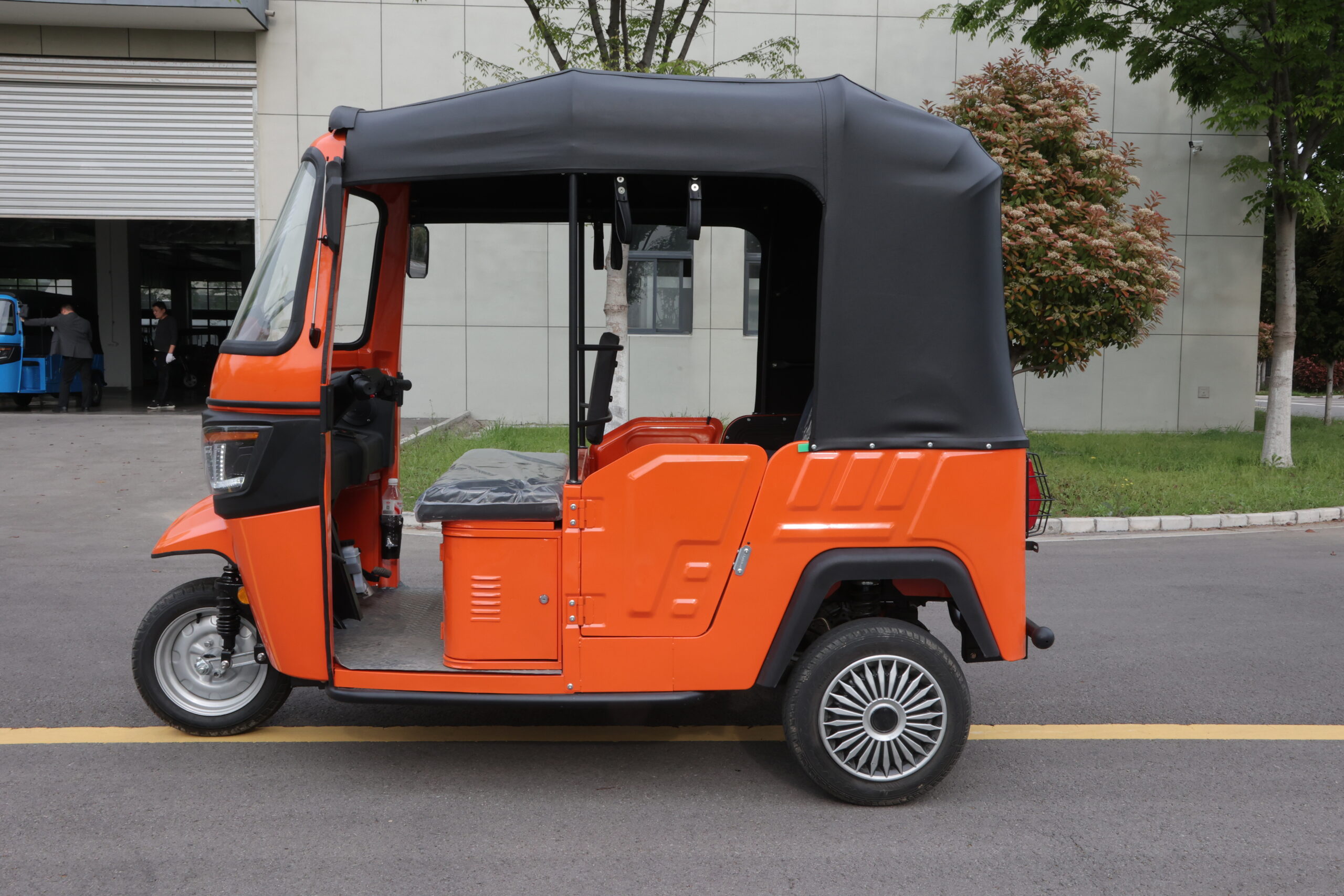

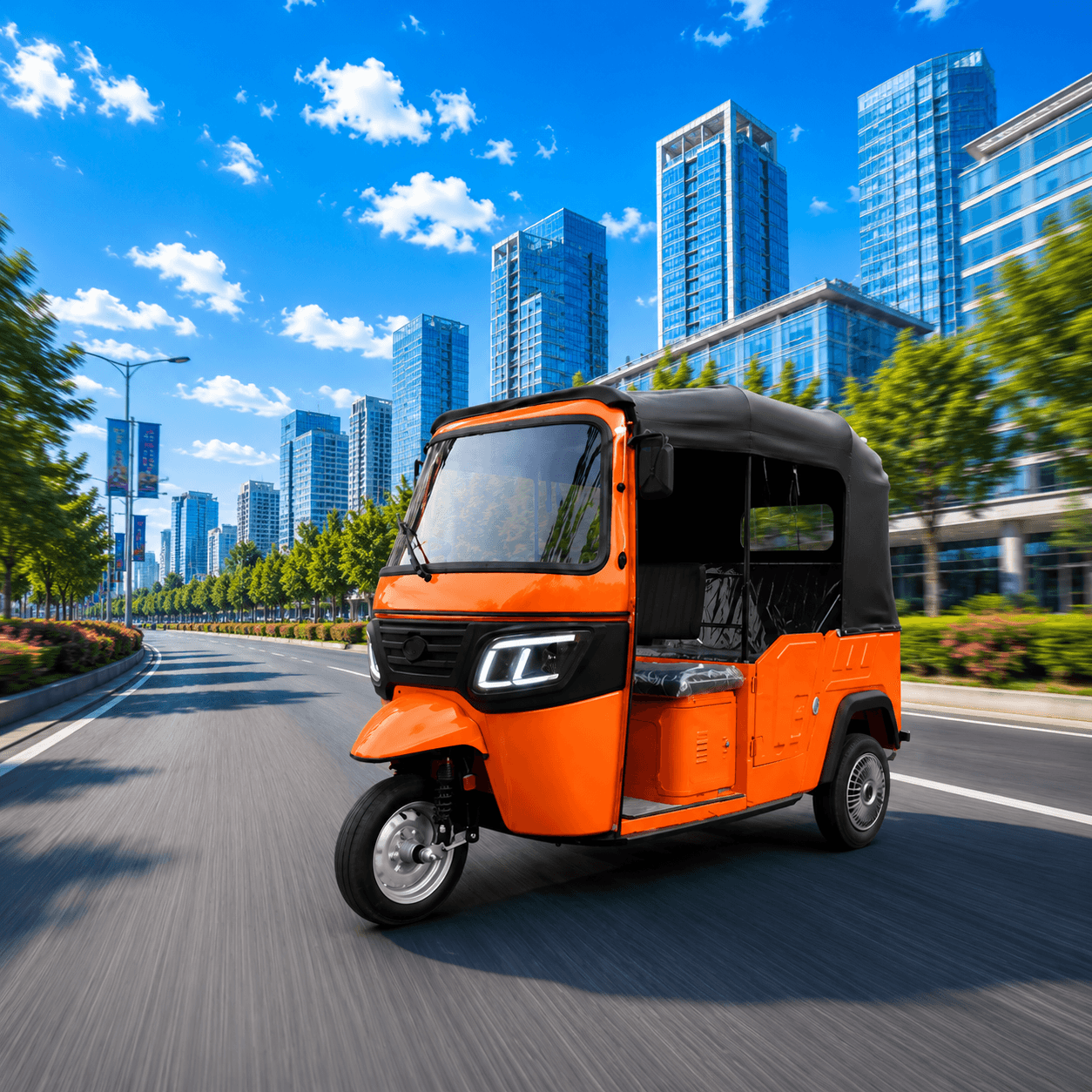

TUKTUK C6/S2-L26-V11 Tuk-tuk, 6 seats, two rows (seating in the same direction) Product Specifications [4.0 Chassis Solution + Battery Swapping]
Additional information
Description
Main Configuration
| Item | Configuration |
|---|---|
| Control Type | Handlebar type |
| Wiper | Single wiper (auto-reset) |
| Body Material | Stamped iron shell |
| Minimum Turning Radius | 3.2 m |
| Rear Axle | Constant velocity universal joint |

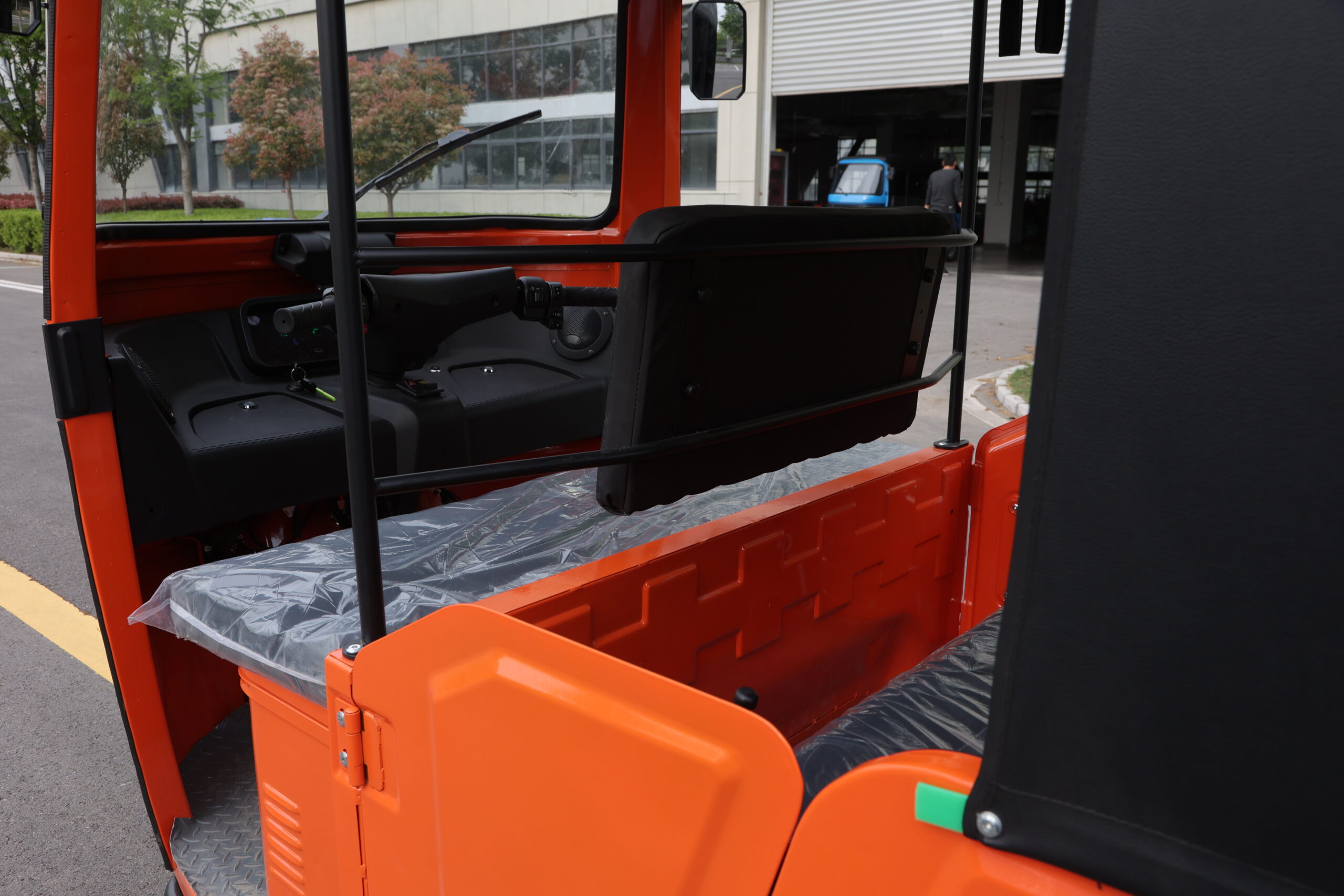

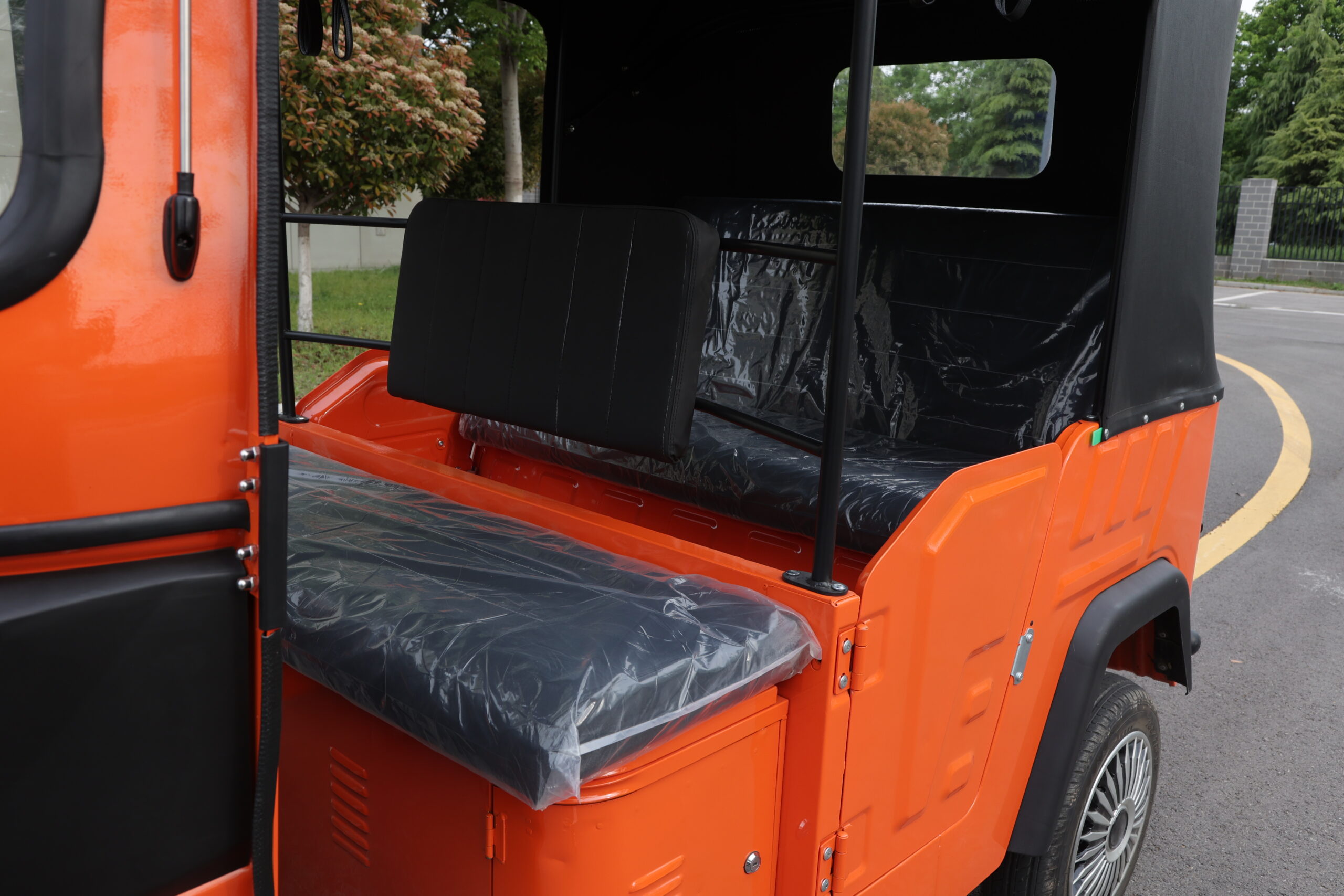

| Seat Rows | 2 |
| Occupants | 6 |
| Curb Weight | 350 kg |
| Maximum Load | 600 kg |
| Charging Time | 6–8 hours |
| Top Speed | 50–60 km/h |
| Braking Distance | 8 m |
| Gear Ratio | 8.3:1 |
Main Technical Parameters
| Item | Parameter |
|---|---|
| Dimensions (L × W × H) | 2600 × 1330 × 1900 mm (28 units per 40ft HQ container) |
| Brake Type | Oil drum brake: Front 180 / Rear 220 |
| Ground Clearance | 200 mm |

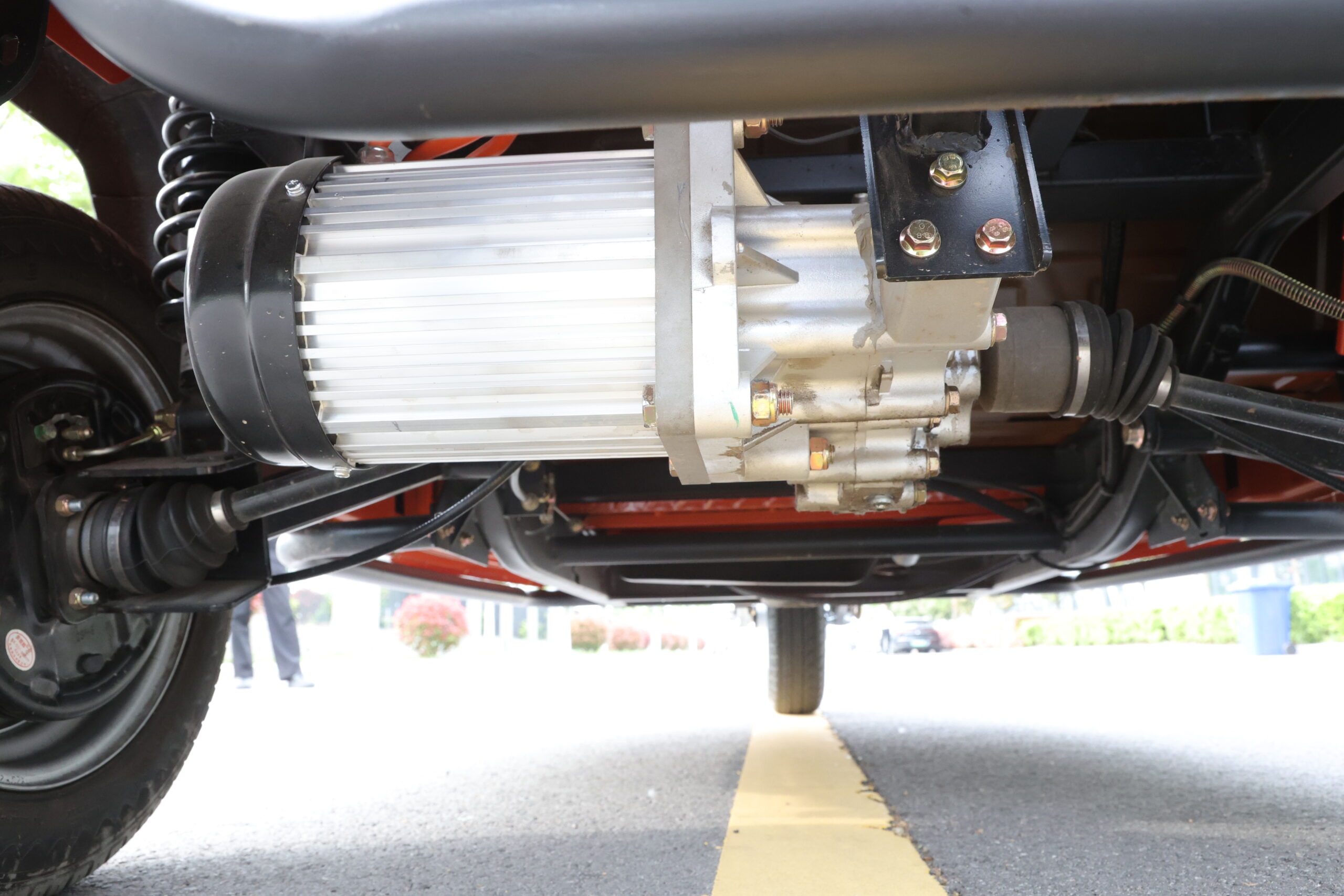

| Motor | Permanent magnet synchronous resolver motor |
| Controller | Permanent magnet synchronous resolver controller |
| Wheelbase | 1950 mm |
| Track Width | 1250 mm |

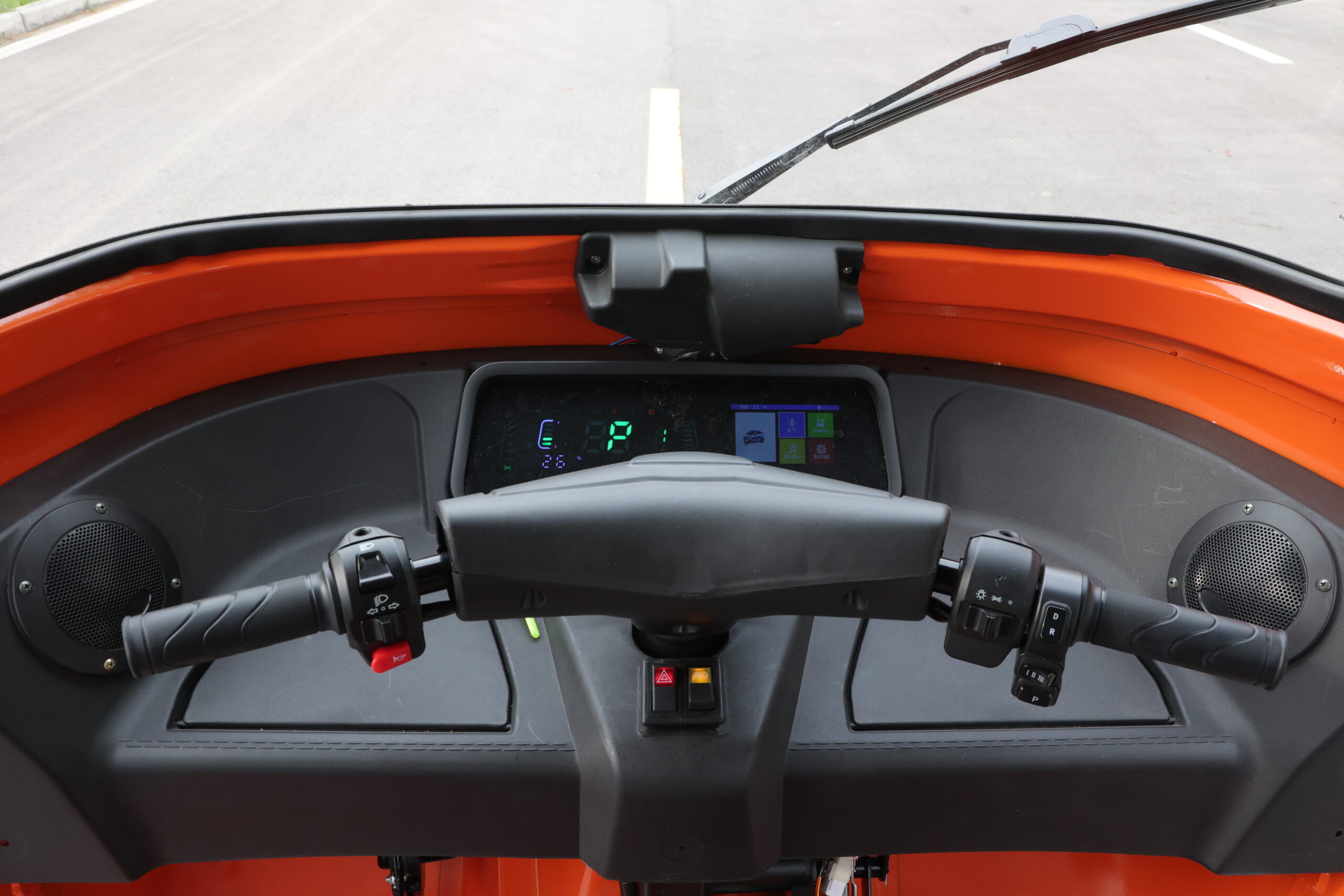

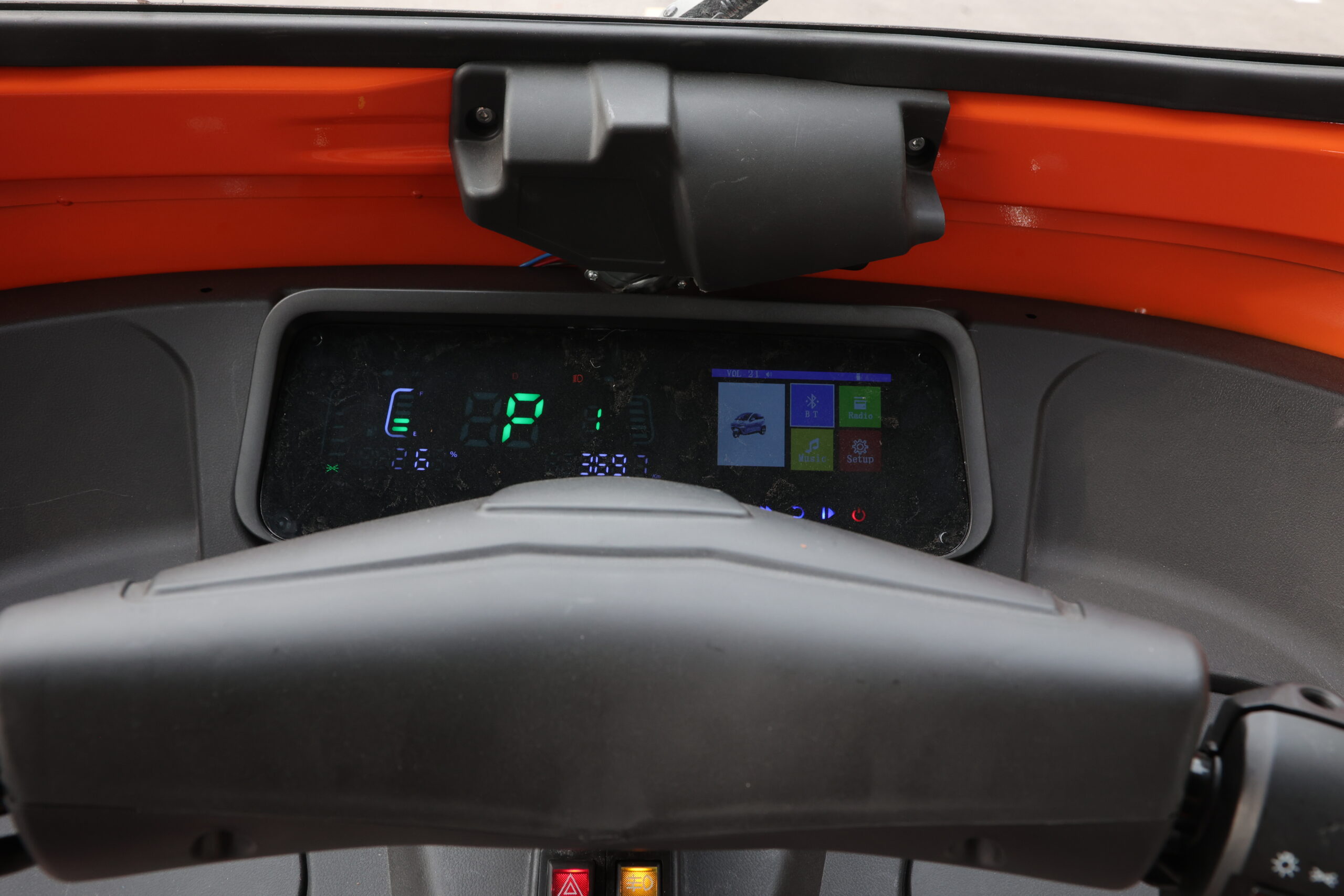

| Instrument Panel | TFT display + CAN/485 + reverse camera |
| Multimedia | USB / SD / radio / Bluetooth |

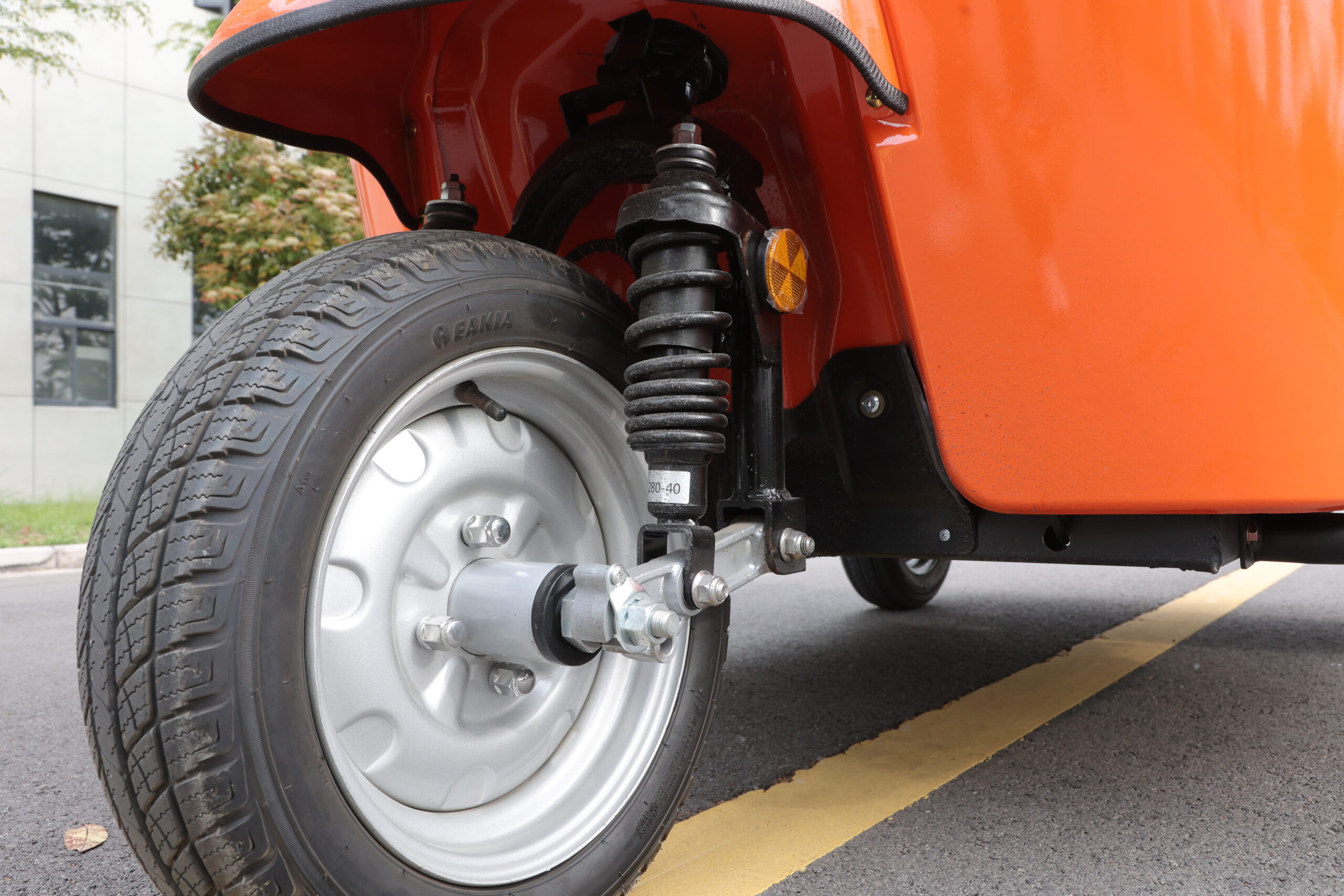

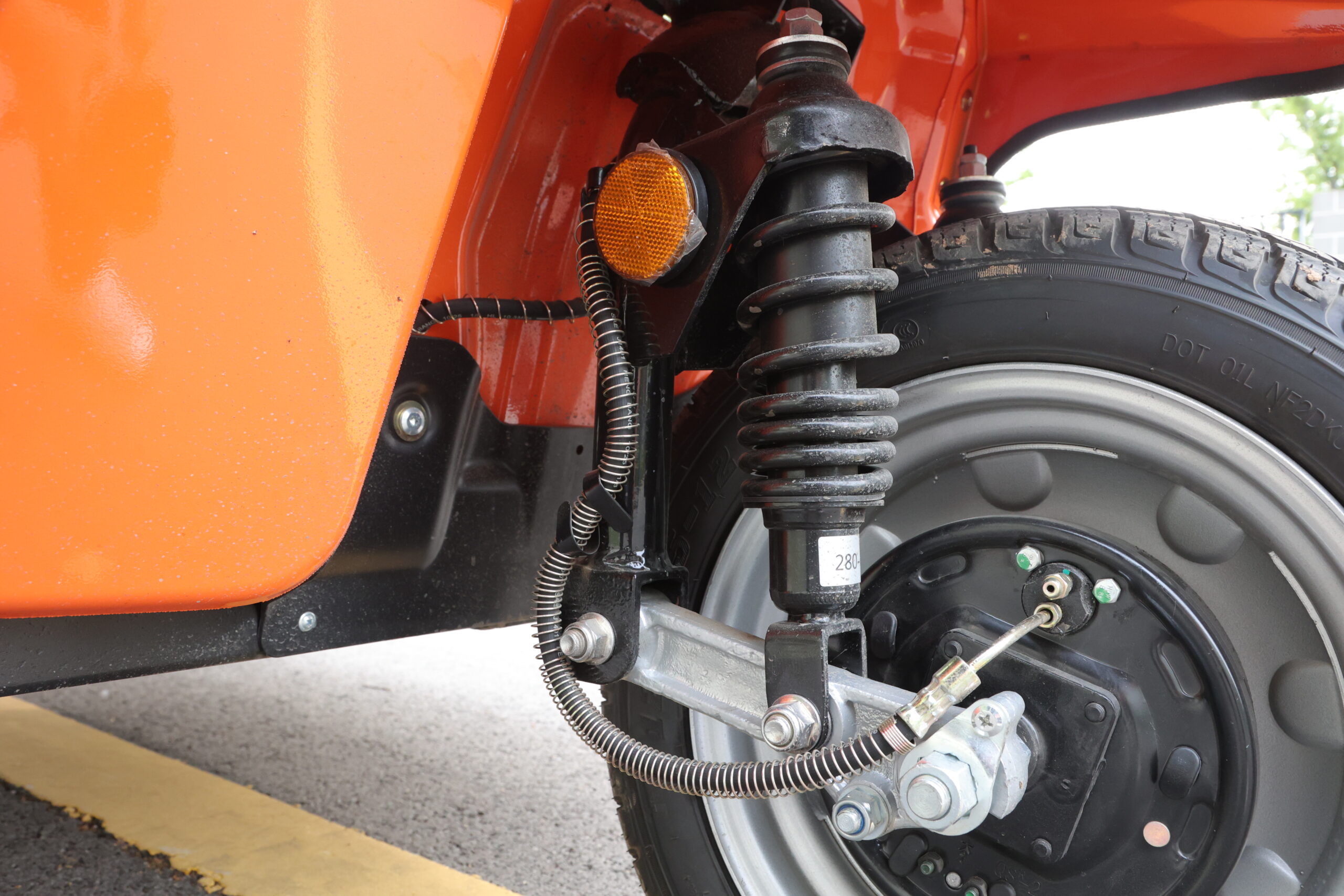

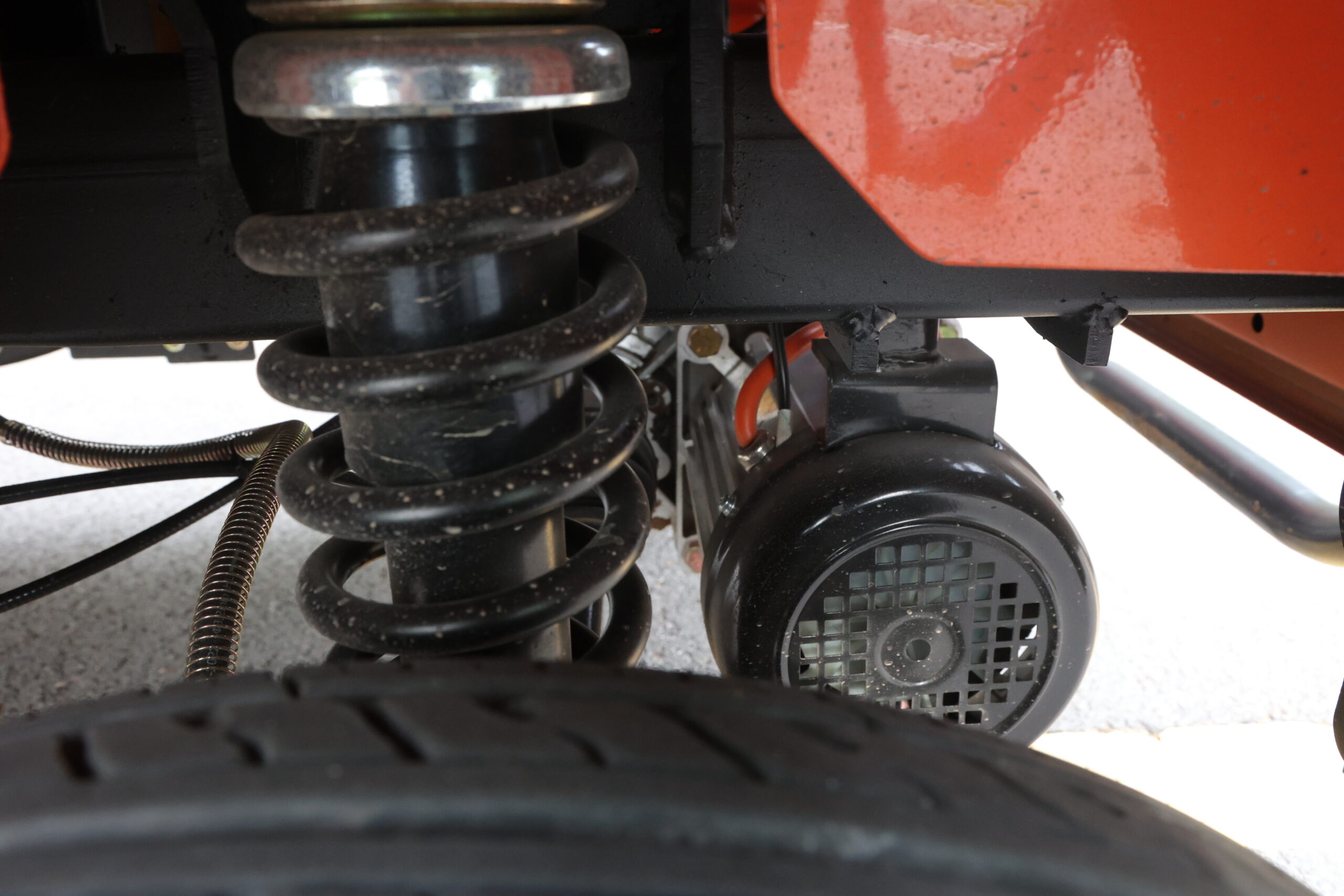

| Suspension | Front double rocker arm / Rear independent suspension |

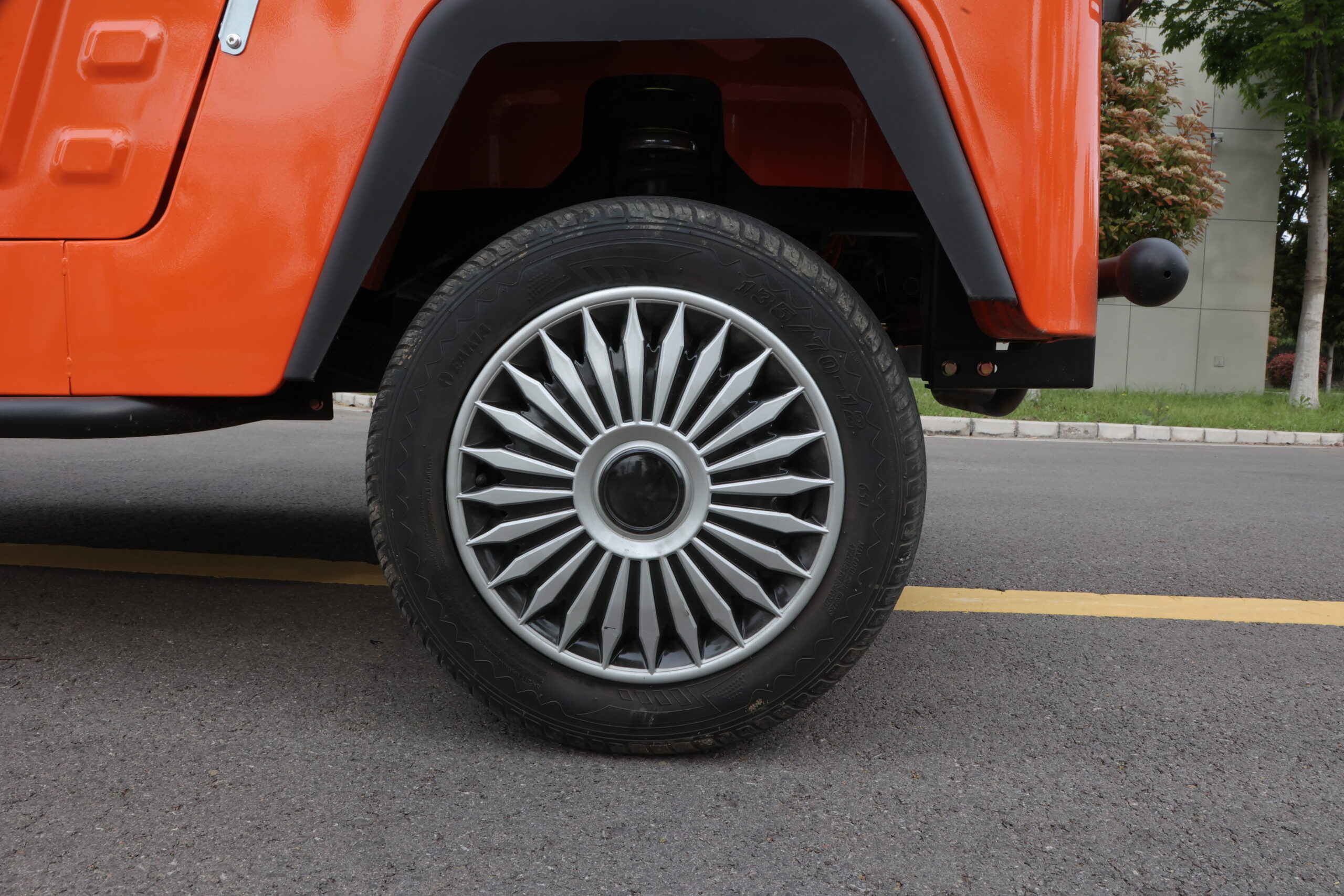

| Wheels | 125/65-12 steel wheels |
| Tires | 125/65-12 vacuum tires |

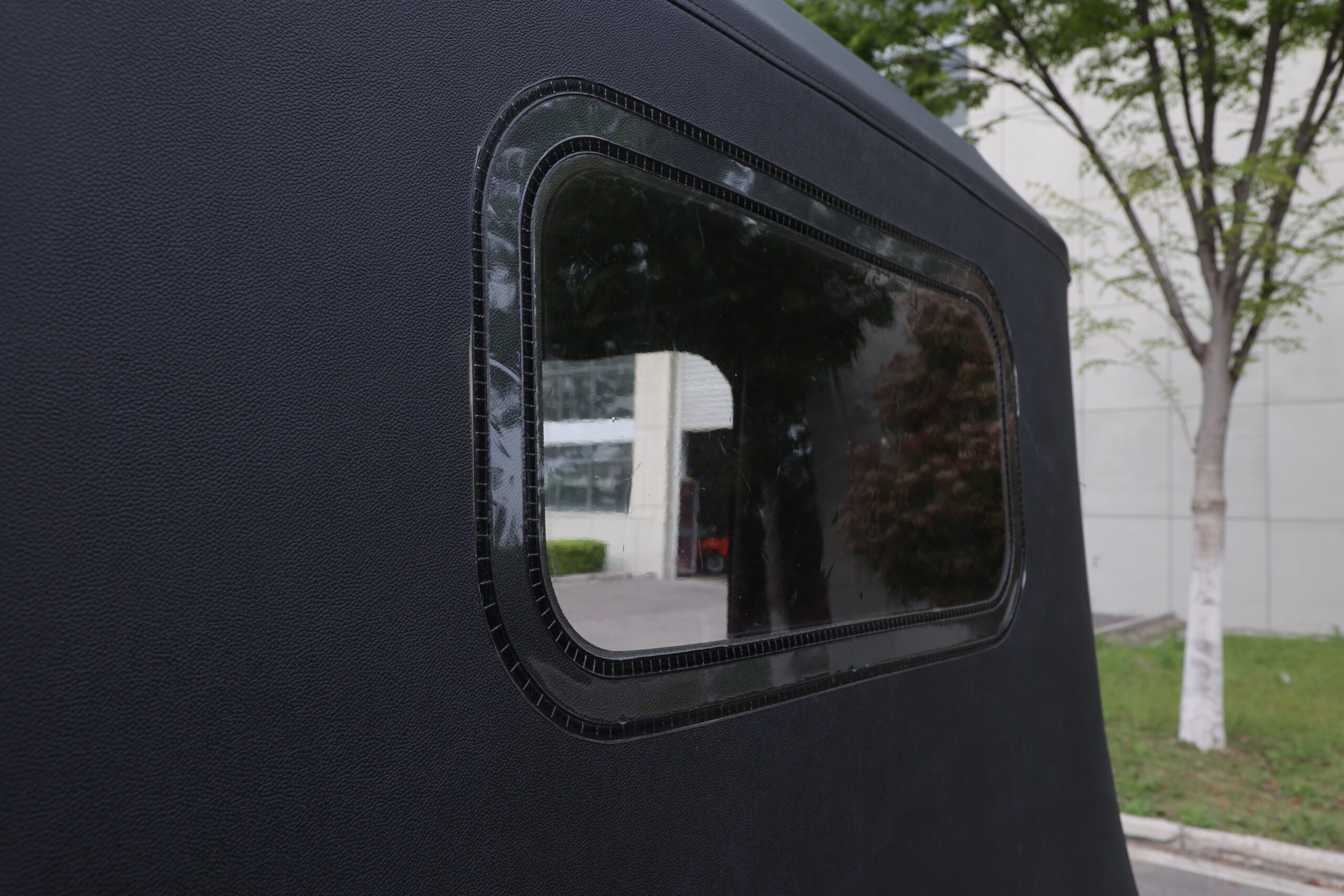

| Canopy | Framed canopy + thickened leather |
| Brake System | Hydraulic single pedal brake |
| Parking Brake | Foot brake + P gear |
Features

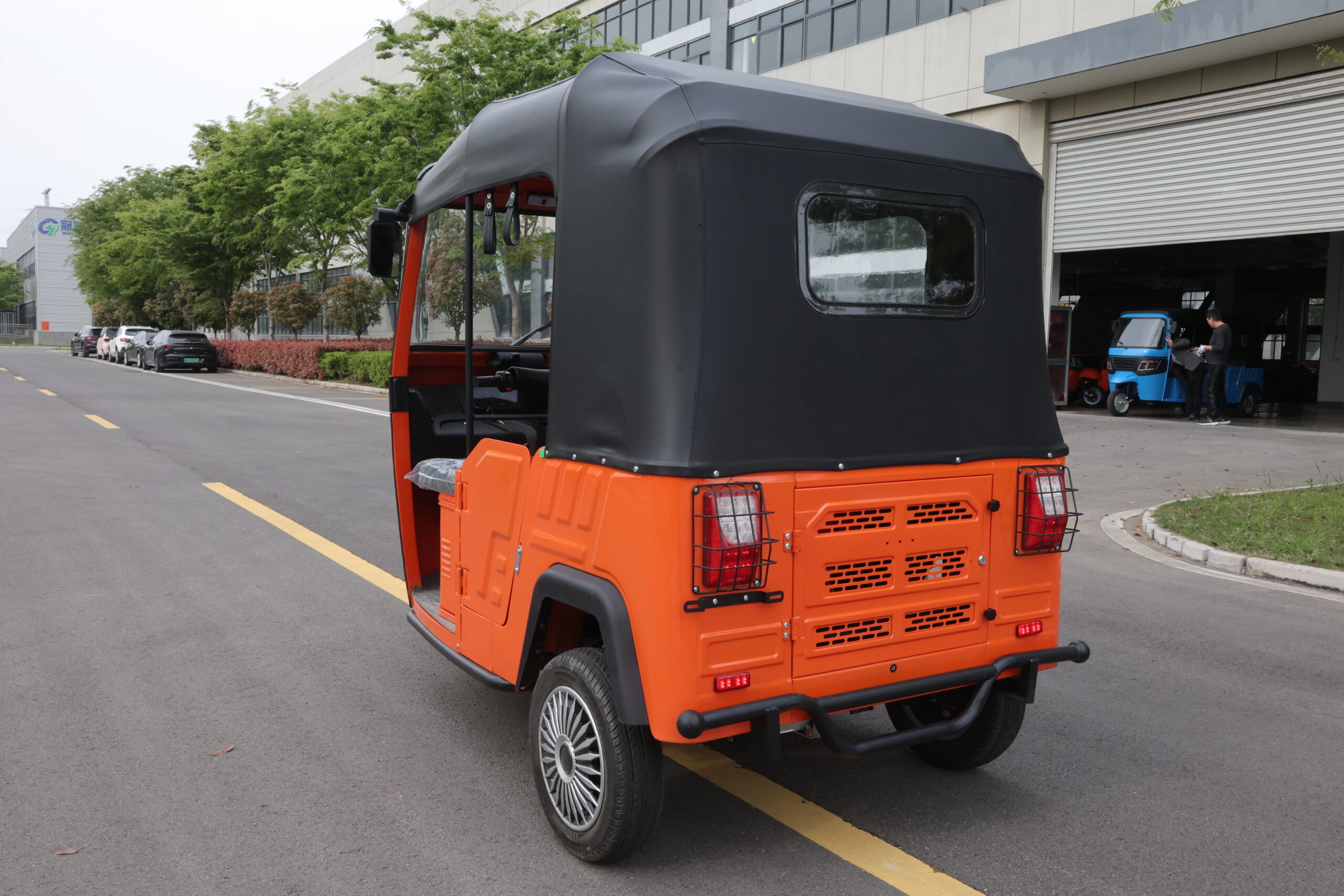

- Rear and side reflectors for safety

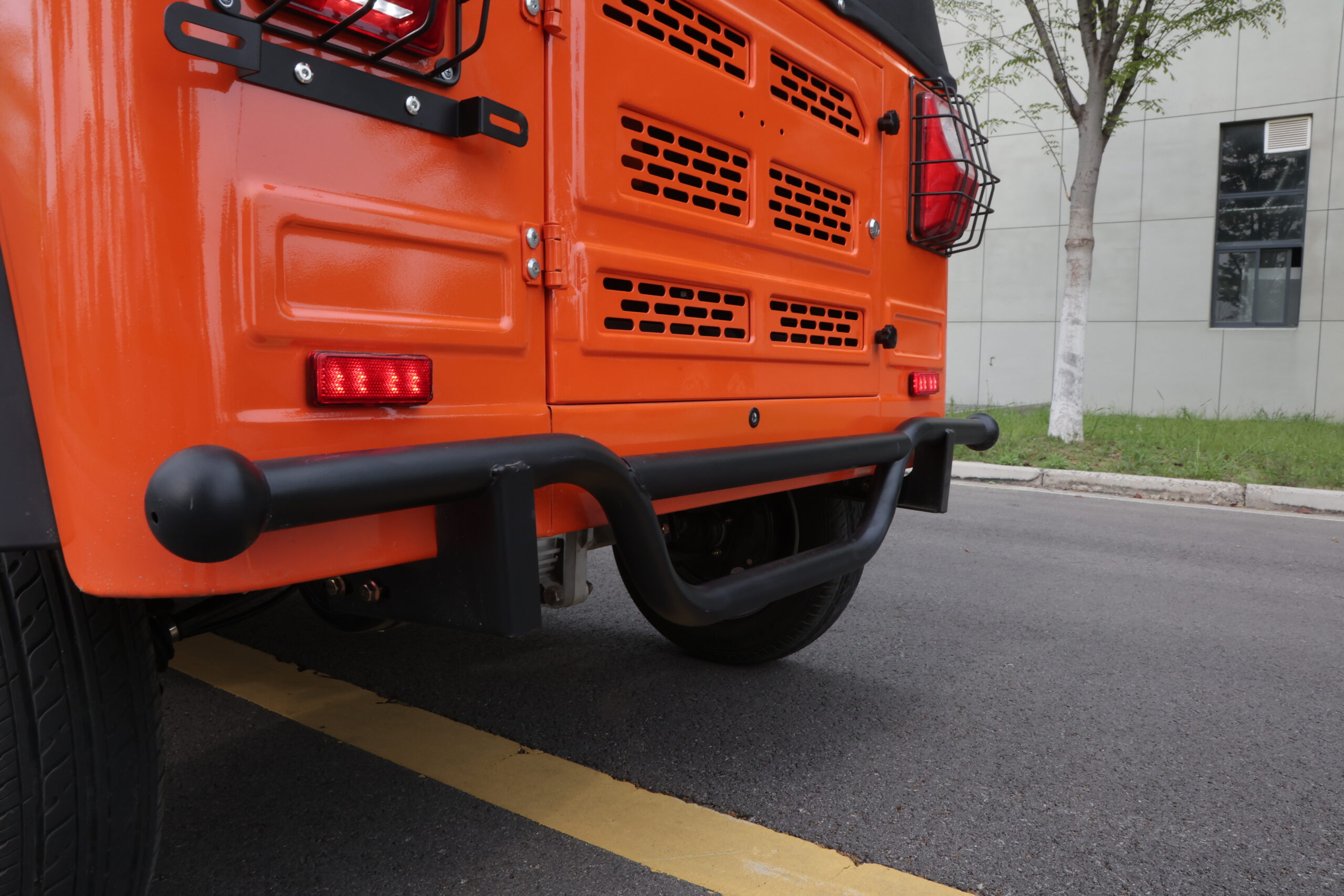

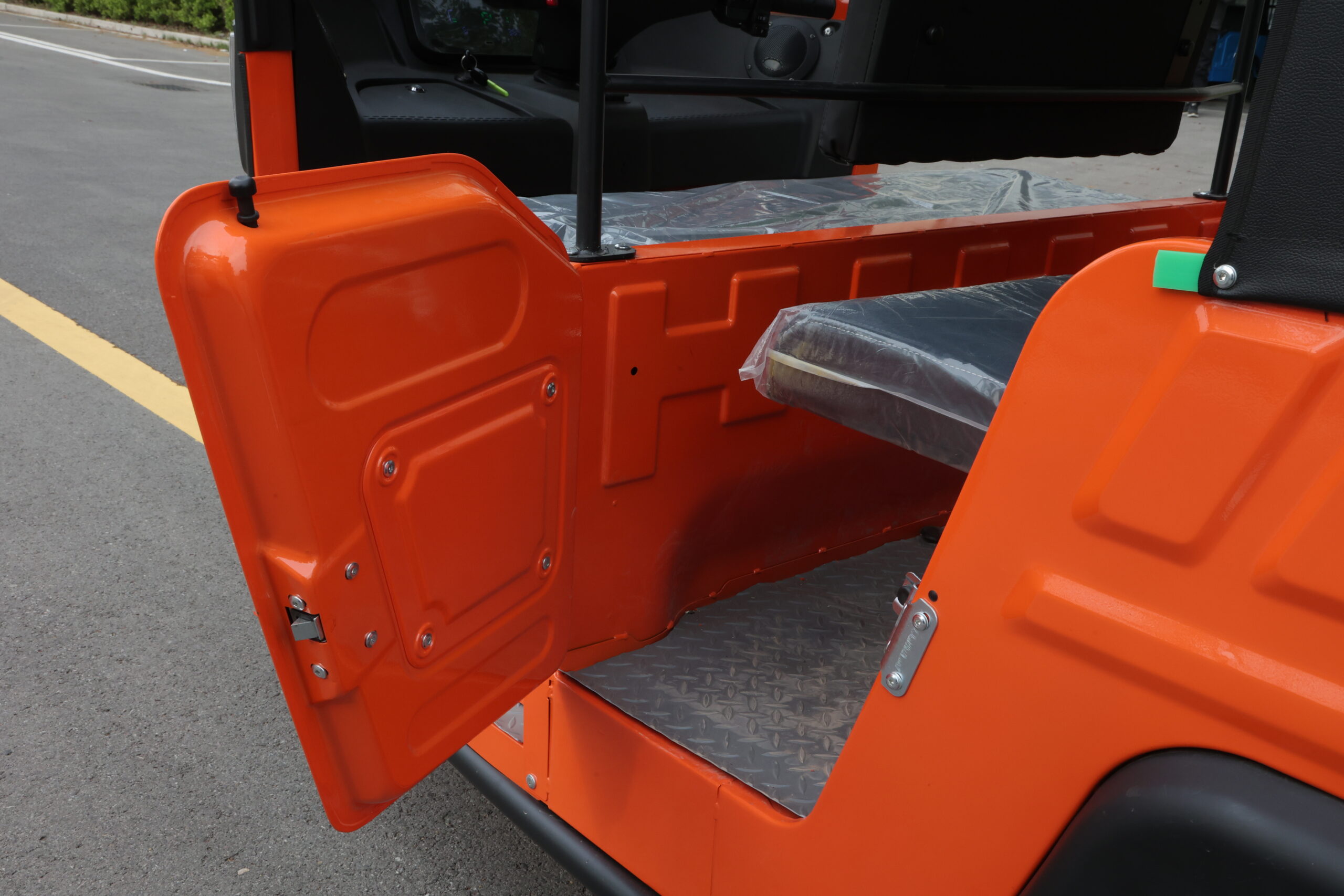

- Rear storage door with anti-theft lock

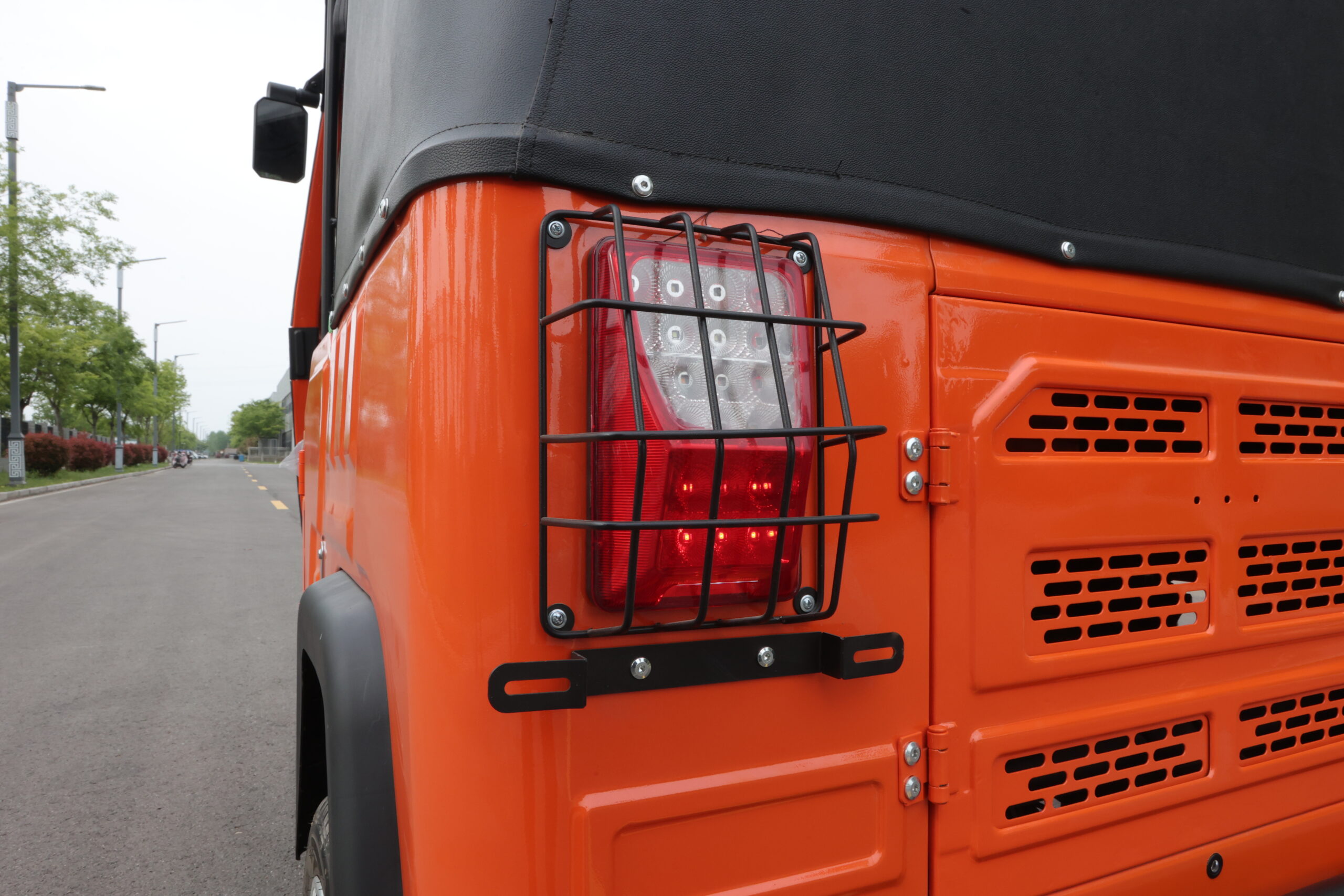

- BAIJI tail lights for African market
- Swappable battery system with quick access design
- High efficiency PMSM motor system (50–60 km/h)
Customization Support
- 485 / CAN communication customization
- OEM / ODM support
- Hybrid extended range systems
- Fast charging & battery swapping solutions
- Cloud platform + remote locking system
- Custom mold development
- Global battery swap ecosystem
- Financing & project integration support
Traction Battery Selection Scheme
| No. | Battery Specification | Warranty | Type | Range |
|---|---|---|---|---|
| 1 | 73.6V 110Ah LiFePO4 (55kg) | 3 years | Software version | 90–110 km |
| 2 | 73.6V 125Ah LiFePO4 (61kg) | 3 years | Software version | 110–130 km |
| 3 | 73.6V 150Ah LiFePO4 (74kg) | 3 years | Software version | 130–150 km |
| 4 | Central Controller | Remote tracking system | System | Platform included |
| 5 | SIM Data Card | - | - | - |
| 6 | 72V40A Charging Gun + Socket | 13 months | Gun type | - |
| 7 | 72V30A Charging Gun + Socket | 13 months | Gun type | - |
| 8 | 72V20A Charging Gun + Socket | 13 months | Gun type | - |
| 9 | 72V15A Charging Gun + Socket | 13 months | Gun type | - |
| 10 | 72V12A Charger | 13 months | Plug-in | - |
| 11 | 72V20A Charger | 13 months | Plug-in | - |
| 12 | 72V25A Charger | 13 months | Plug-in | - |
| 13 | 72V35A Charger | 13 months | Plug-in | - |
