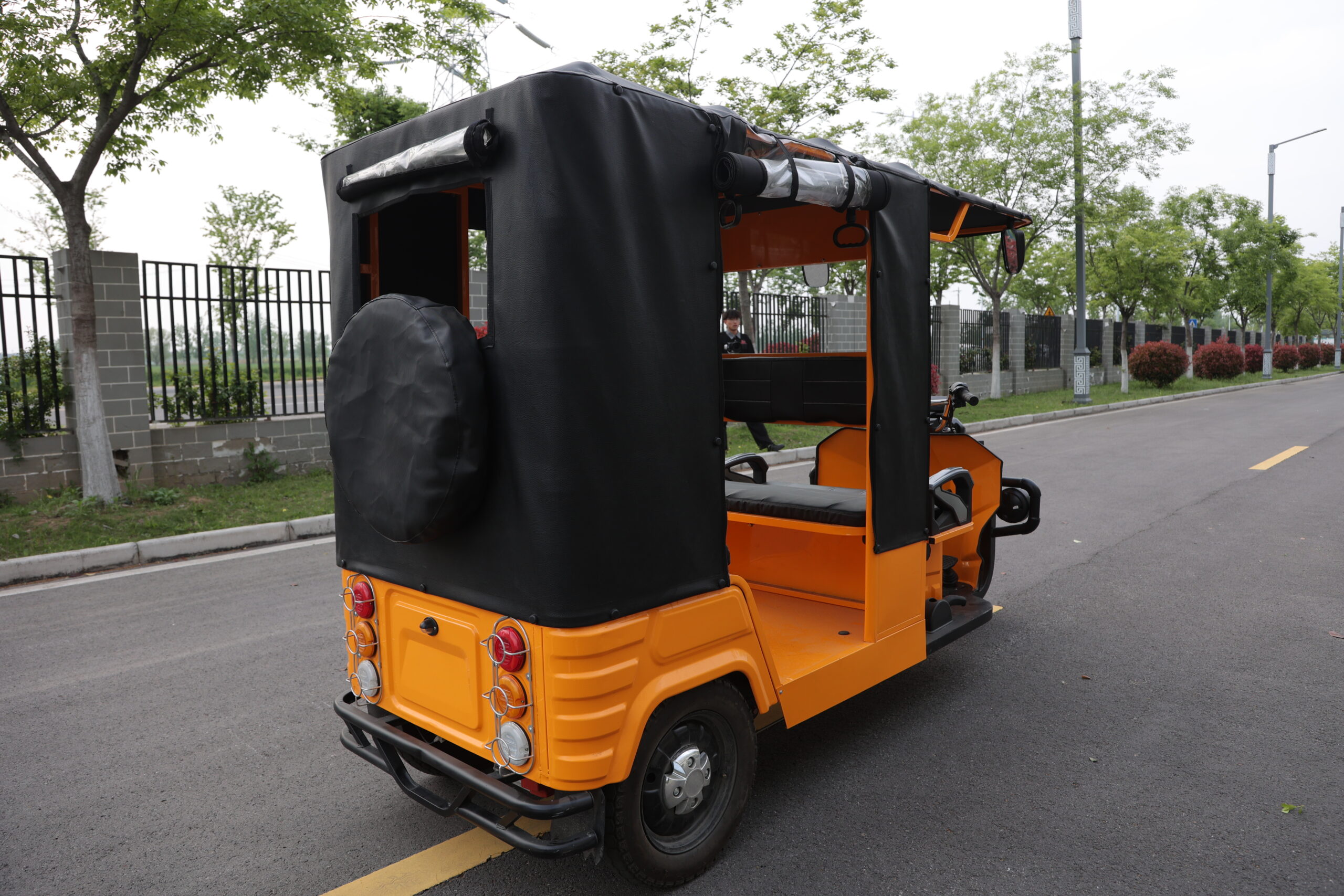

South Asia South America Africa Electric Cargo Tricycle VIGO-V01 5-Seat Double Row (Face-to-Face) Product Specification Sheet [2.0 Chassis Solution] - Image 2

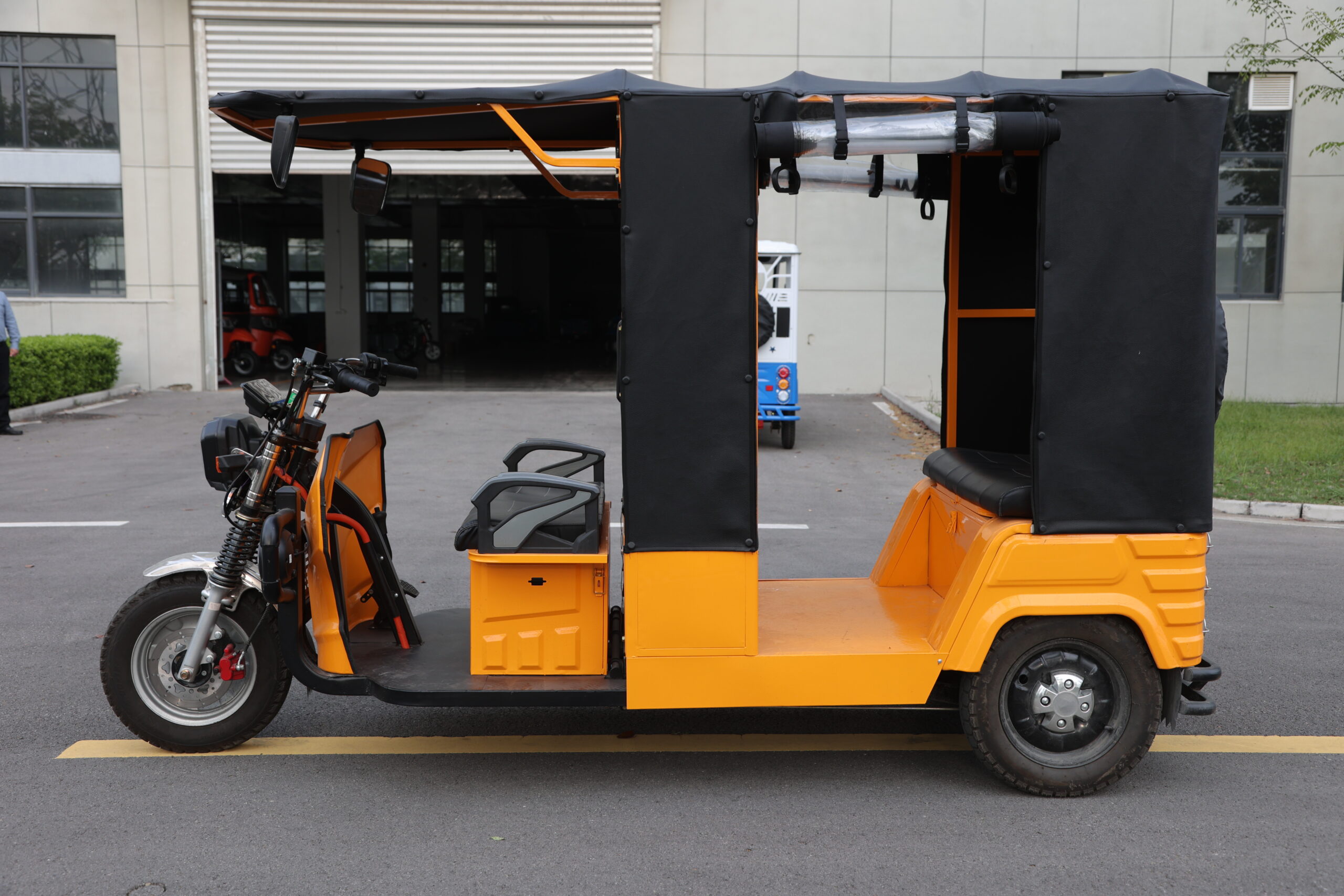

South Asia South America Africa Electric Cargo Tricycle VIGO-V01 5-Seat Double Row (Face-to-Face) Product Specification Sheet [2.0 Chassis Solution] - Image 3
South Asia South America Africa Electric Cargo Tricycle VIGO-V01 5-Seat Double Row (Face-to-Face) Product Specification Sheet [2.0 Chassis Solution] - Image 4
South Asia South America Africa Electric Cargo Tricycle VIGO-V01 5-Seat Double Row (Face-to-Face) Product Specification Sheet [2.0 Chassis Solution] - Image 5
South Asia South America Africa Electric Cargo Tricycle VIGO-V01 5-Seat Double Row (Face-to-Face) Product Specification Sheet [2.0 Chassis Solution] - Image 6
South Asia South America Africa Electric Cargo Tricycle VIGO-V01 5-Seat Double Row (Face-to-Face) Product Specification Sheet [2.0 Chassis Solution] - Image 7
South Asia South America Africa Electric Cargo Tricycle VIGO-V01 5-Seat Double Row (Face-to-Face) Product Specification Sheet [2.0 Chassis Solution] - Image 8
South Asia South America Africa Electric Cargo Tricycle VIGO-V01 5-Seat Double Row (Face-to-Face) Product Specification Sheet [2.0 Chassis Solution] - Image 9
South Asia South America Africa Electric Cargo Tricycle VIGO-V01 5-Seat Double Row (Face-to-Face) Product Specification Sheet [2.0 Chassis Solution] - Image 10
South Asia South America Africa Electric Cargo Tricycle VIGO-V01 5-Seat Double Row (Face-to-Face) Product Specification Sheet [2.0 Chassis Solution] - Image 11

South Asia South America Africa Electric Cargo Tricycle VIGO-V01 5-Seat Double Row (Face-to-Face) Product Specification Sheet [2.0 Chassis Solution]

Additional information

Inquire Now

Description

Main Configuration

Item Configuration
Control TypeHandlebar type
WiperSingle wiper (auto-reset)
Body MaterialStamped iron shell
MotorPermanent magnet synchronous motor (IP67 waterproof)
ControllerPMSM controller + hill descent control
Rear AxleStraight axle rear drive

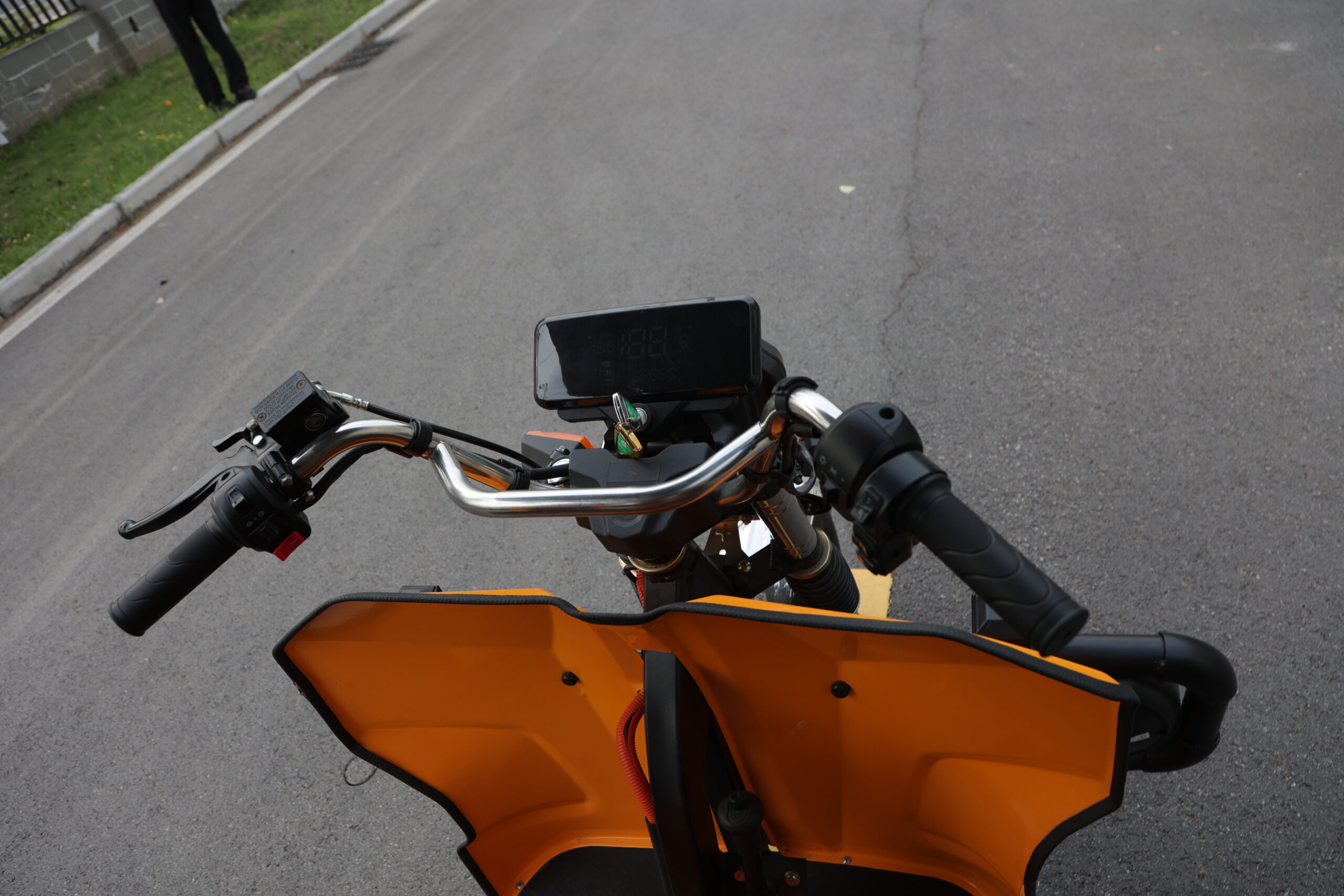

Instrument PanelColor LCD + SOC display

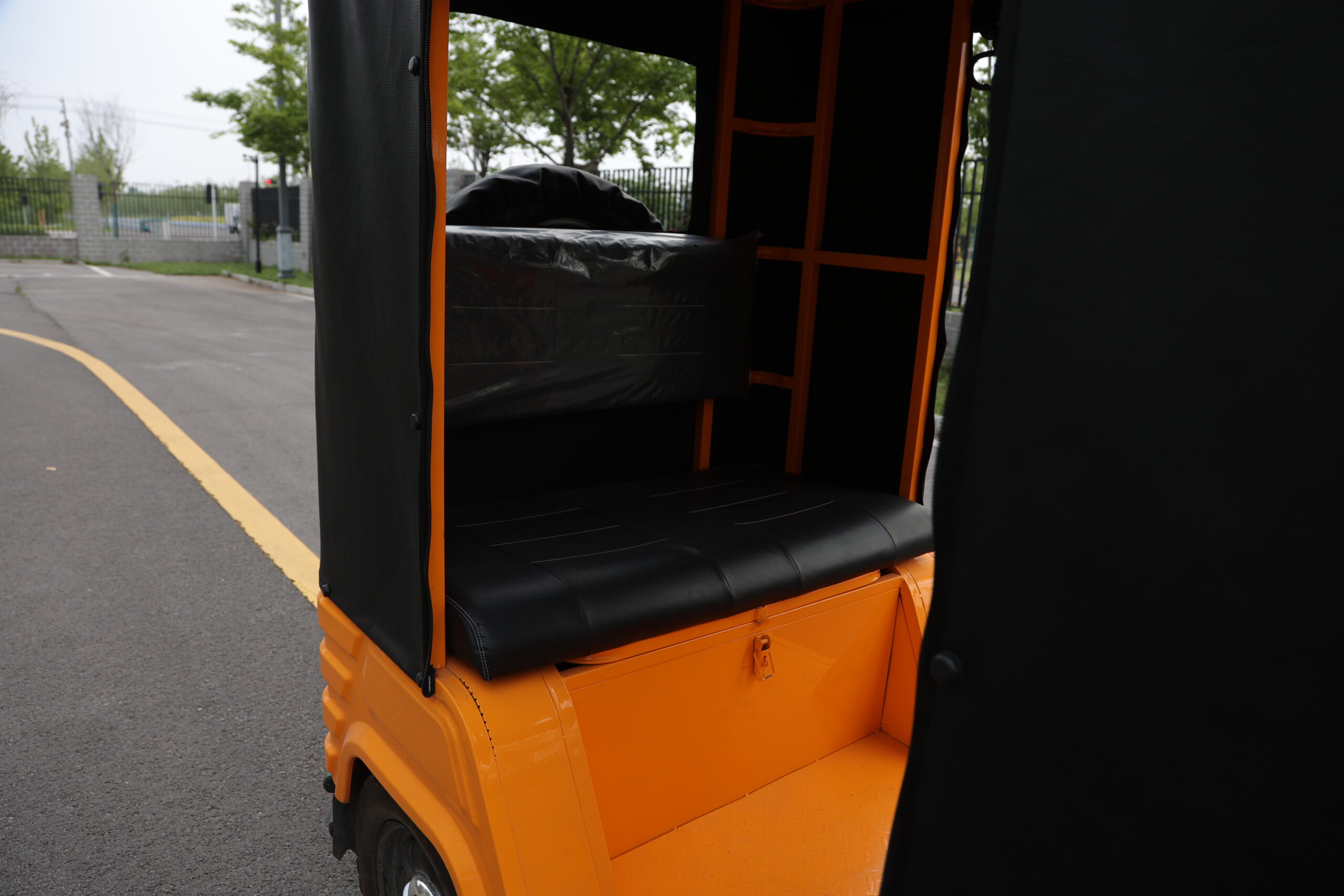

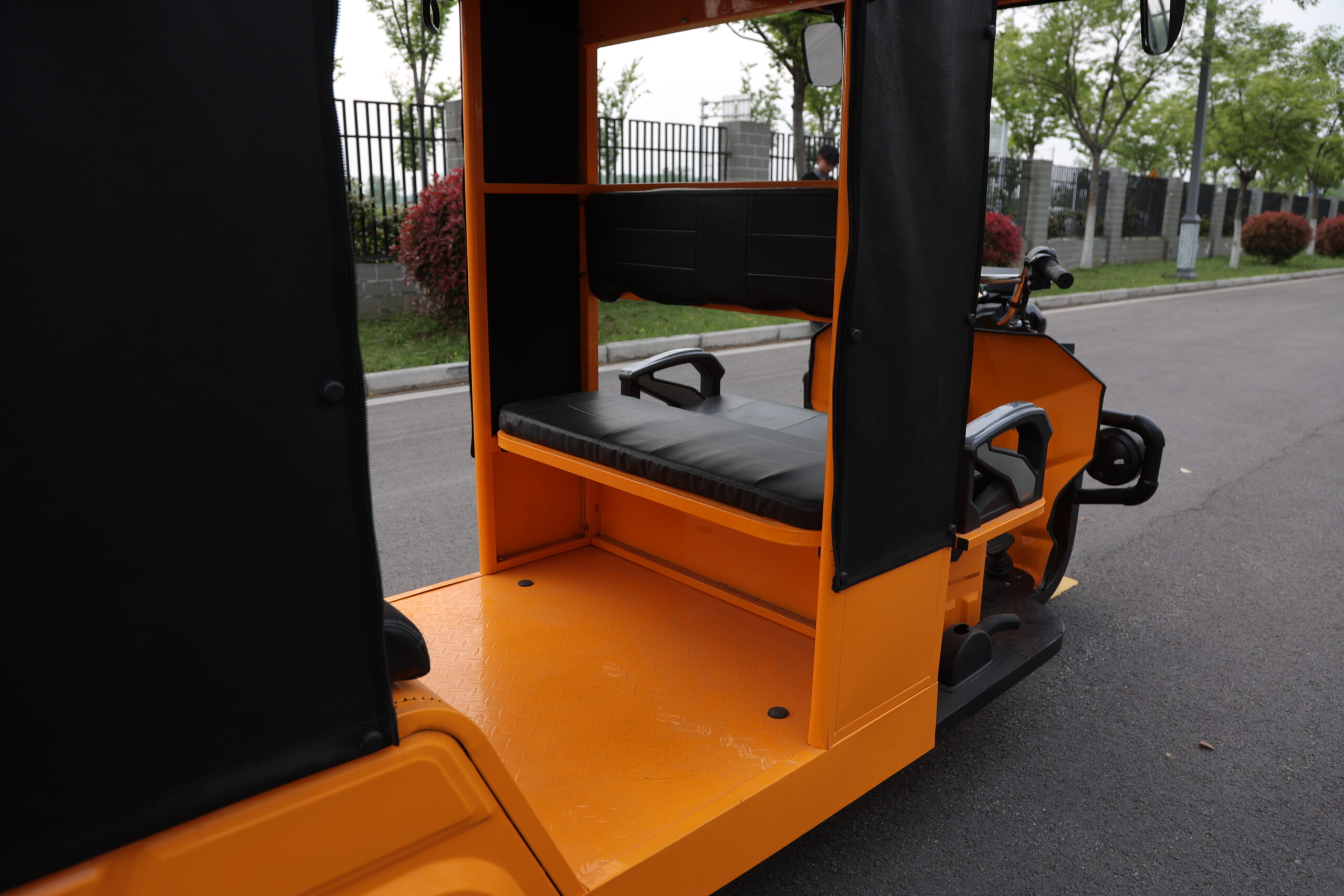

Seat Rows3
MultimediaUSB, radio, Bluetooth audio
Occupants5
Curb Weight255 kg
Max Load500 kg
Charging Time6–8 hours
Top Speed43 km/h
Braking Distance6 m
Gear RatioFast 9.3:1 / Slow 24:1

Main Technical Parameters

Item Parameter
Dimensions (L × W × H)3000 × 1050 × 1810 mm (50 units per 40ft HQ container)
Brake TypeFront disc 220 / Rear drum 160
Ground Clearance160 mm
Turning Radius3.5 m
Wheelbase2290 mm
Track Width860 mm

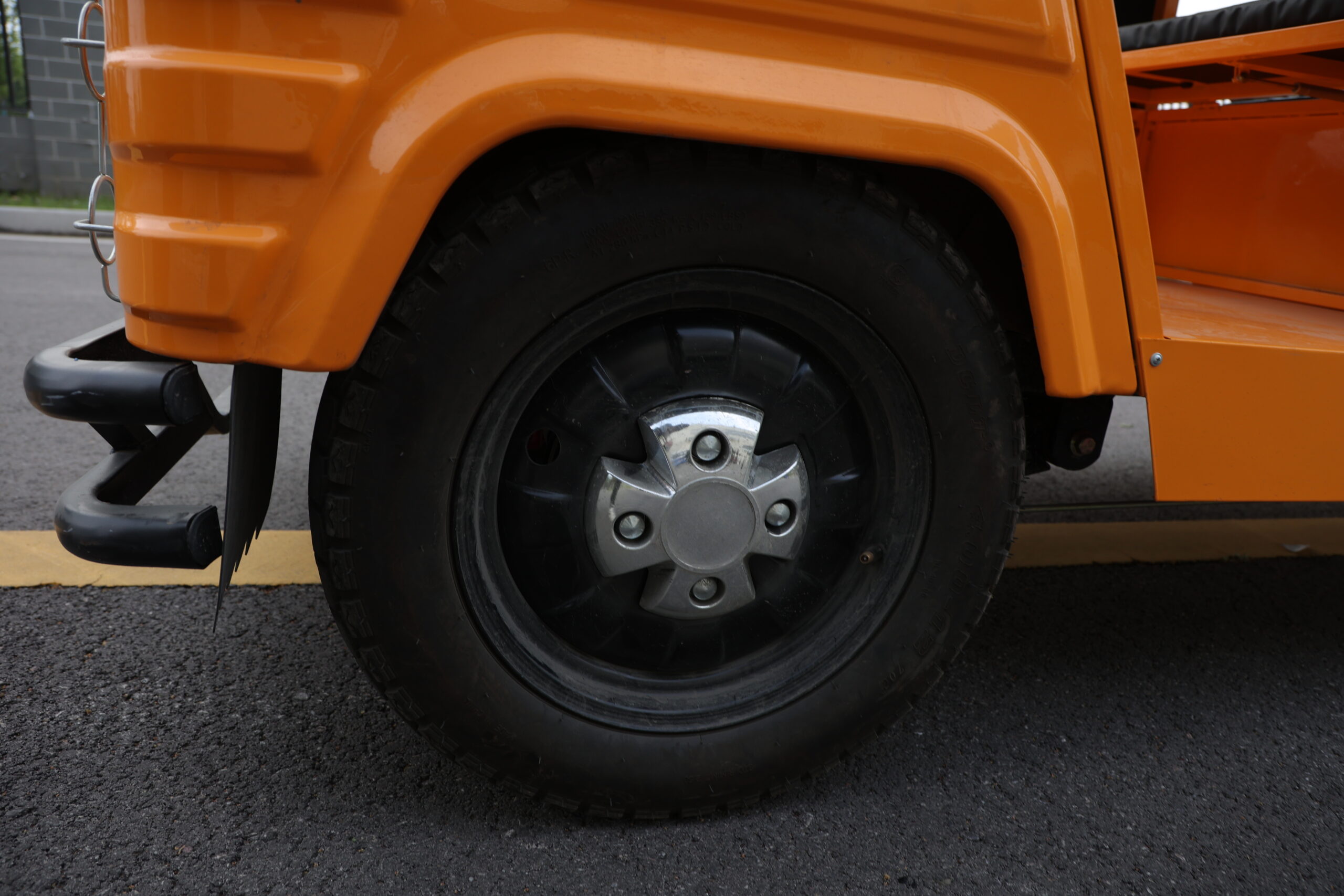

Wheels4.00-12 steel wheels
Tires4.00-12 6PR steel cord (3-wheel interchangeable)

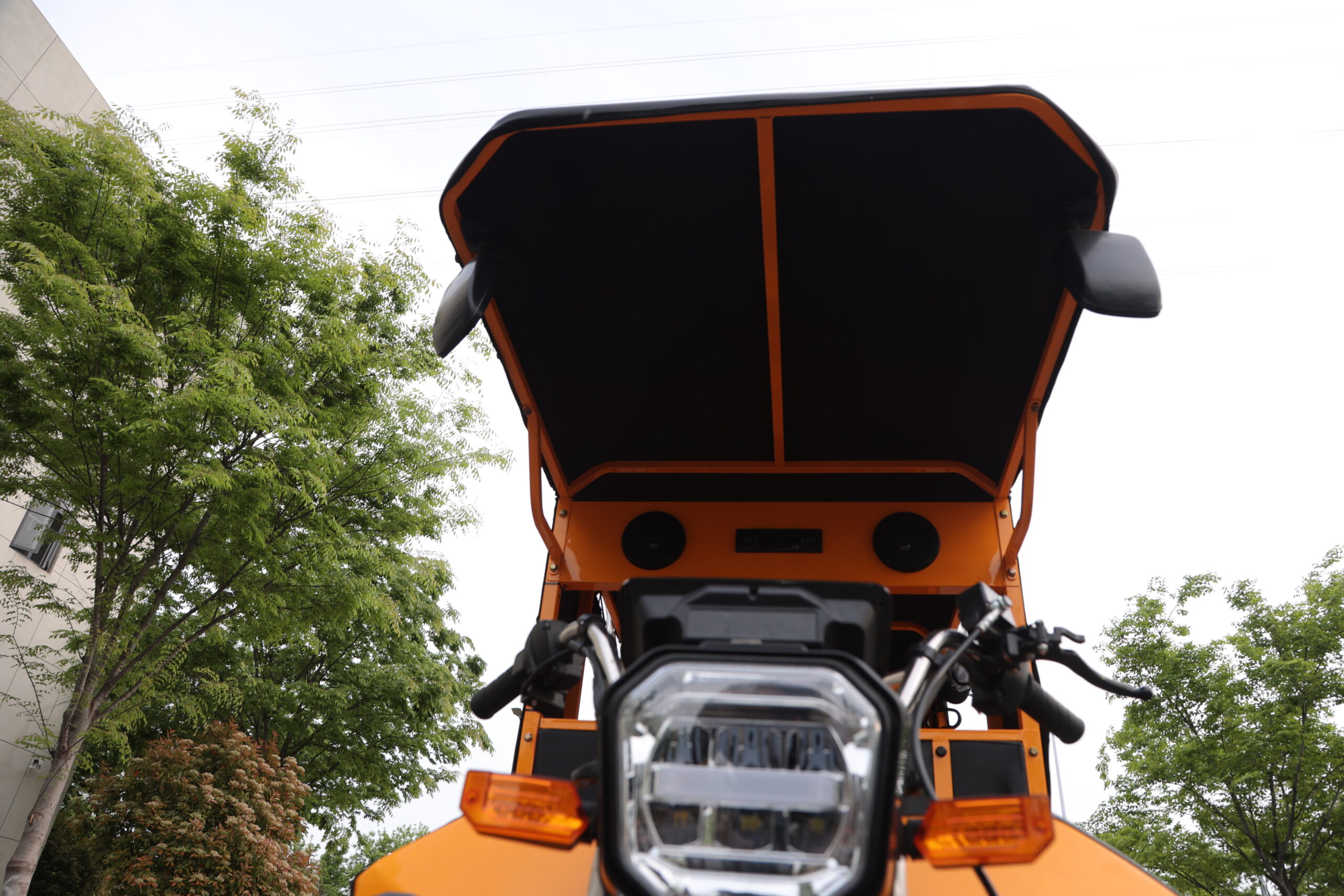

CanopyFramed canopy + leather rain curtain
Brake SystemFront disc + rear drum
Parking BrakeHandbrake + P gear
