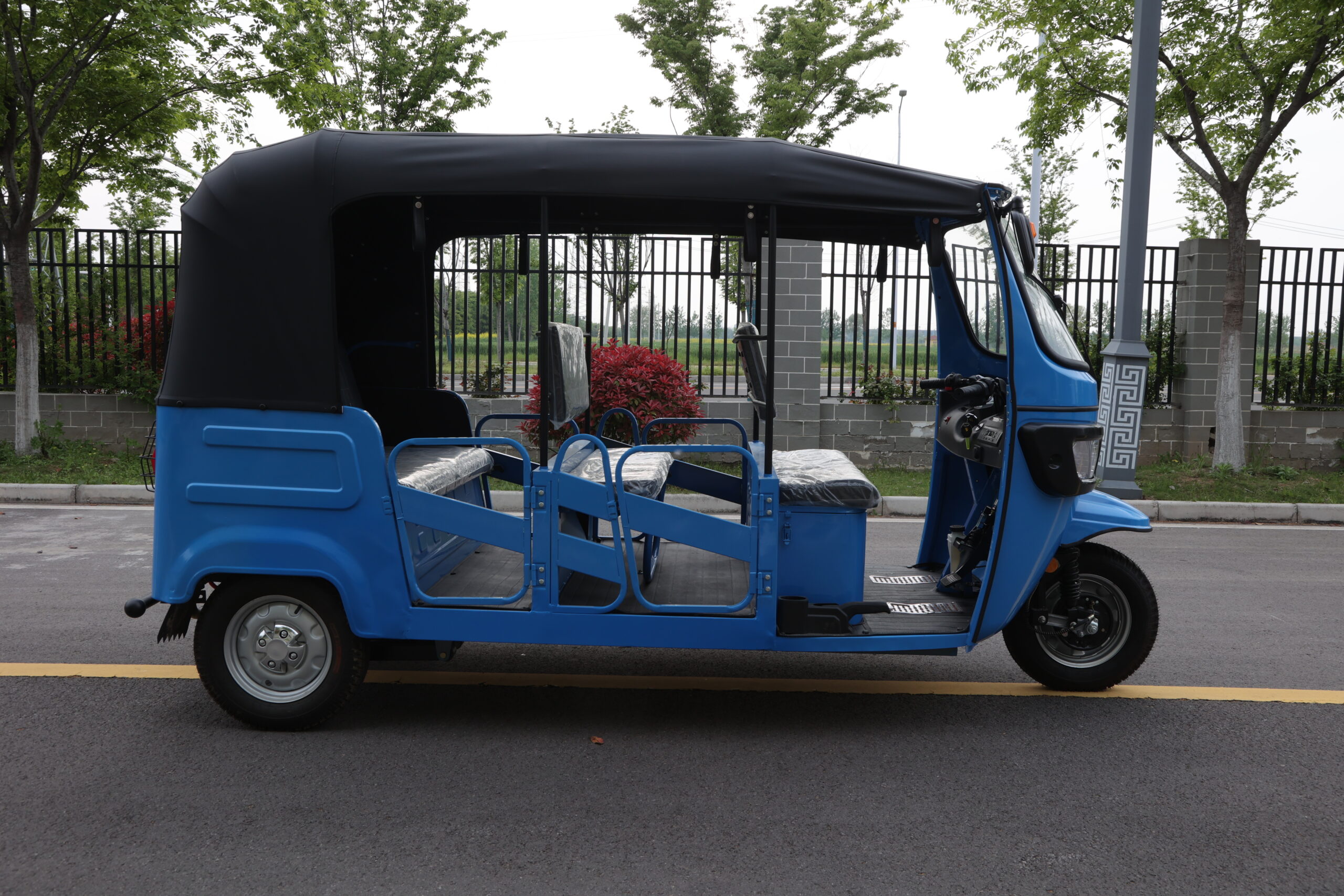

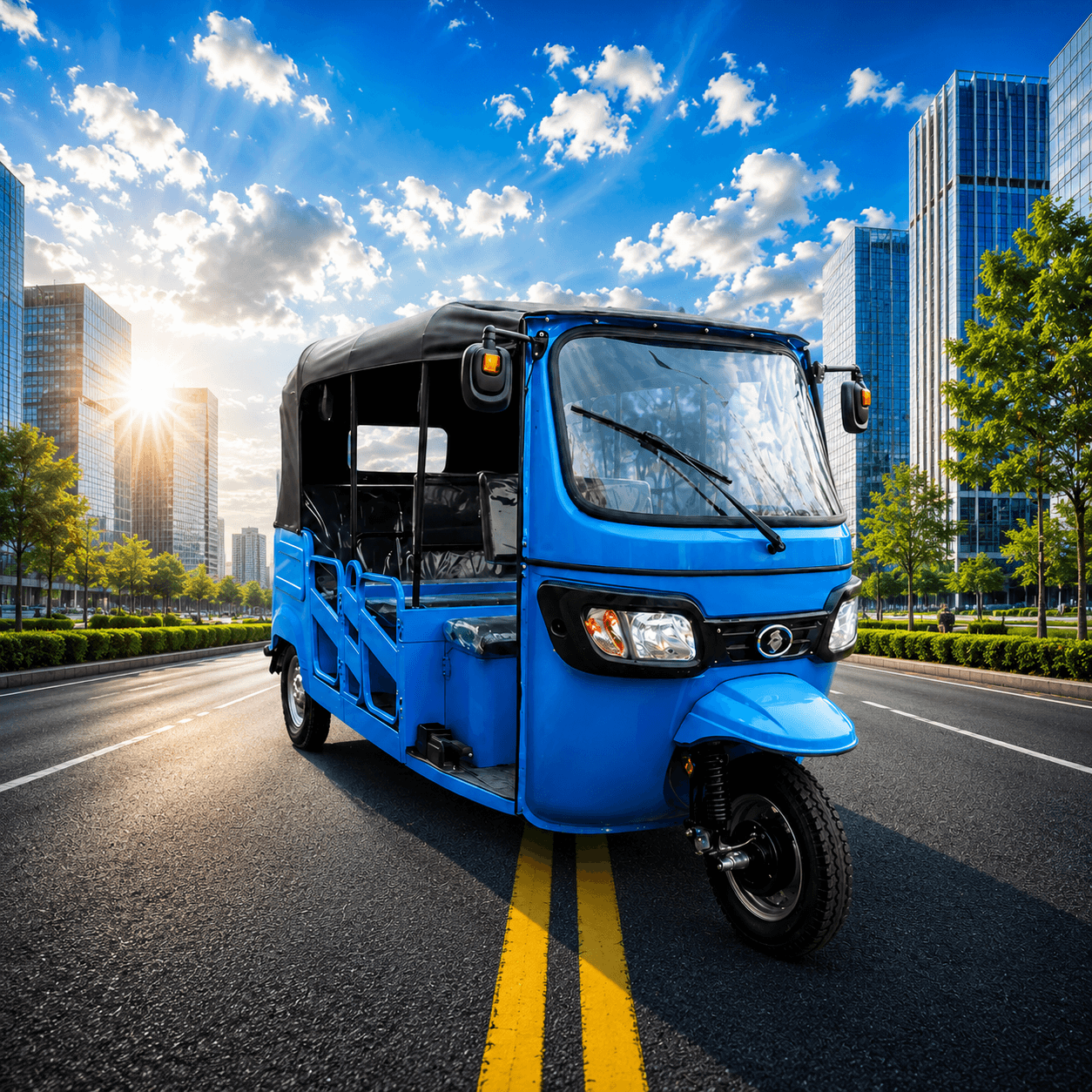

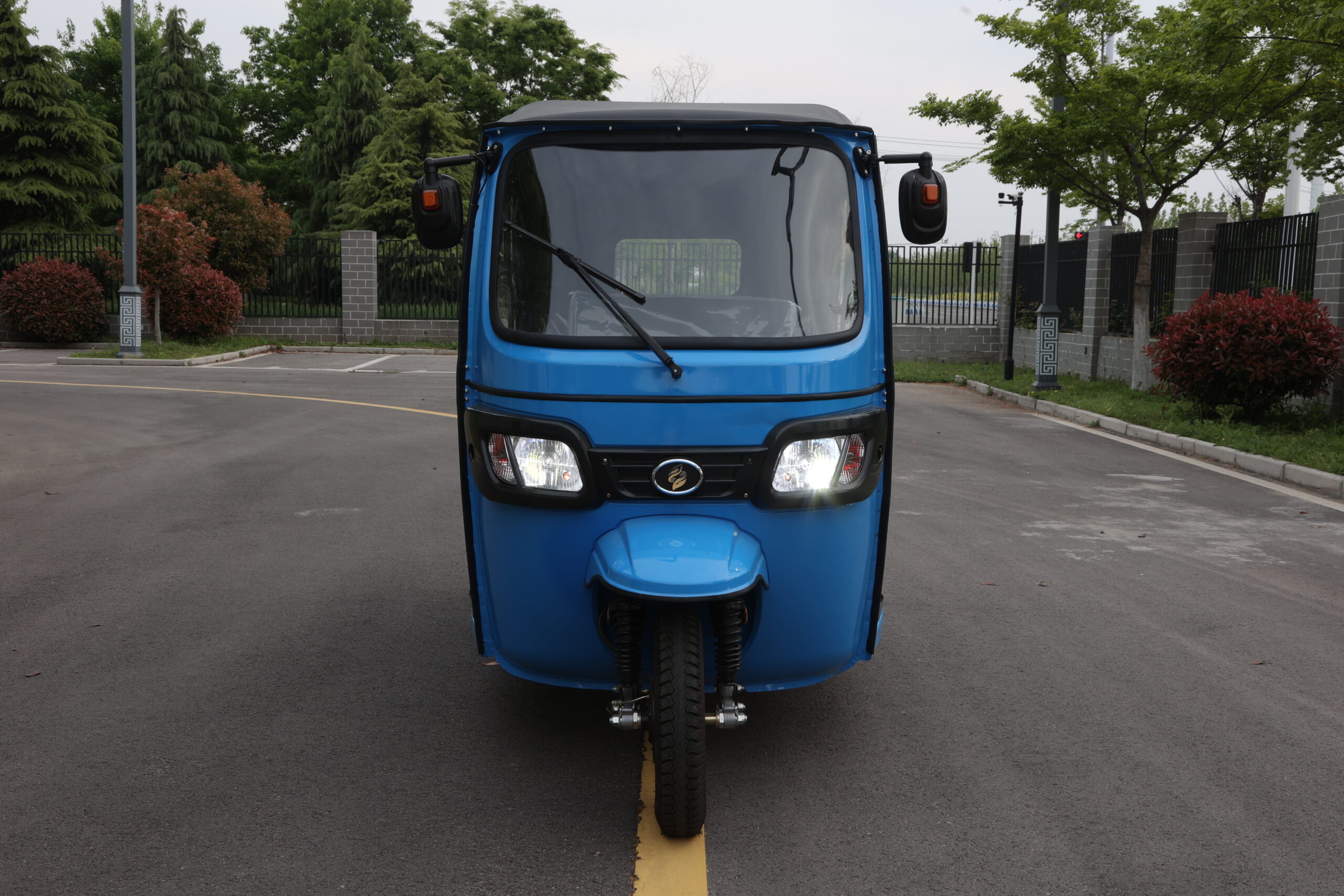

TUKTUK B9/L2-L26-V01 9-seat, three-row (sequential seating) product specification sheet [3.0 chassis solution + battery swapping]
Additional information
Description
Main Configuration
| Item | Configuration |
|---|---|

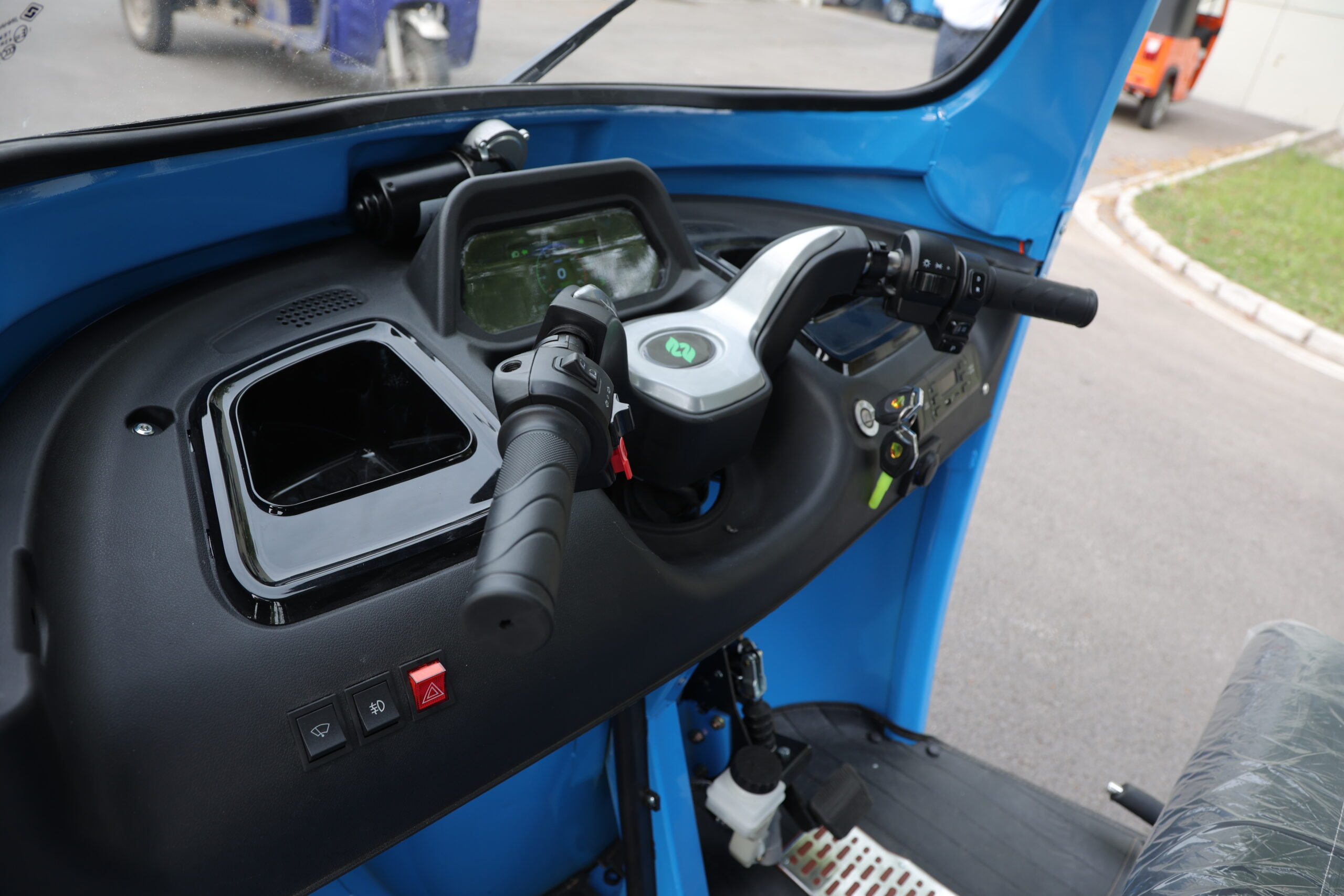

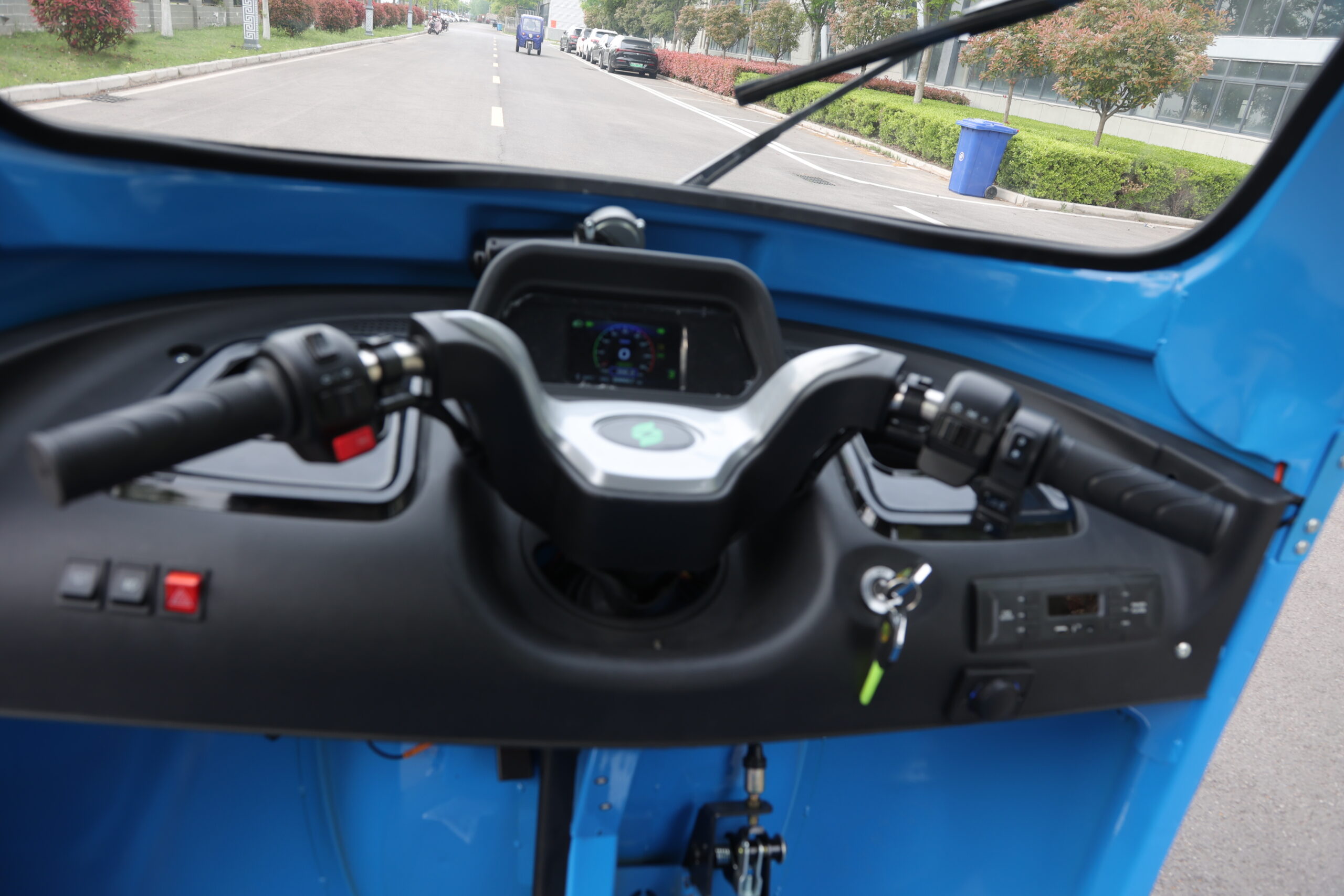

| Control Type | Handlebar type |
| Wiper | Single wiper (auto-reset) |
| Body Material | Stamped iron shell |
| Minimum Turning Radius | 4.7 m |
| Rear Axle | Straight axle rear drive |

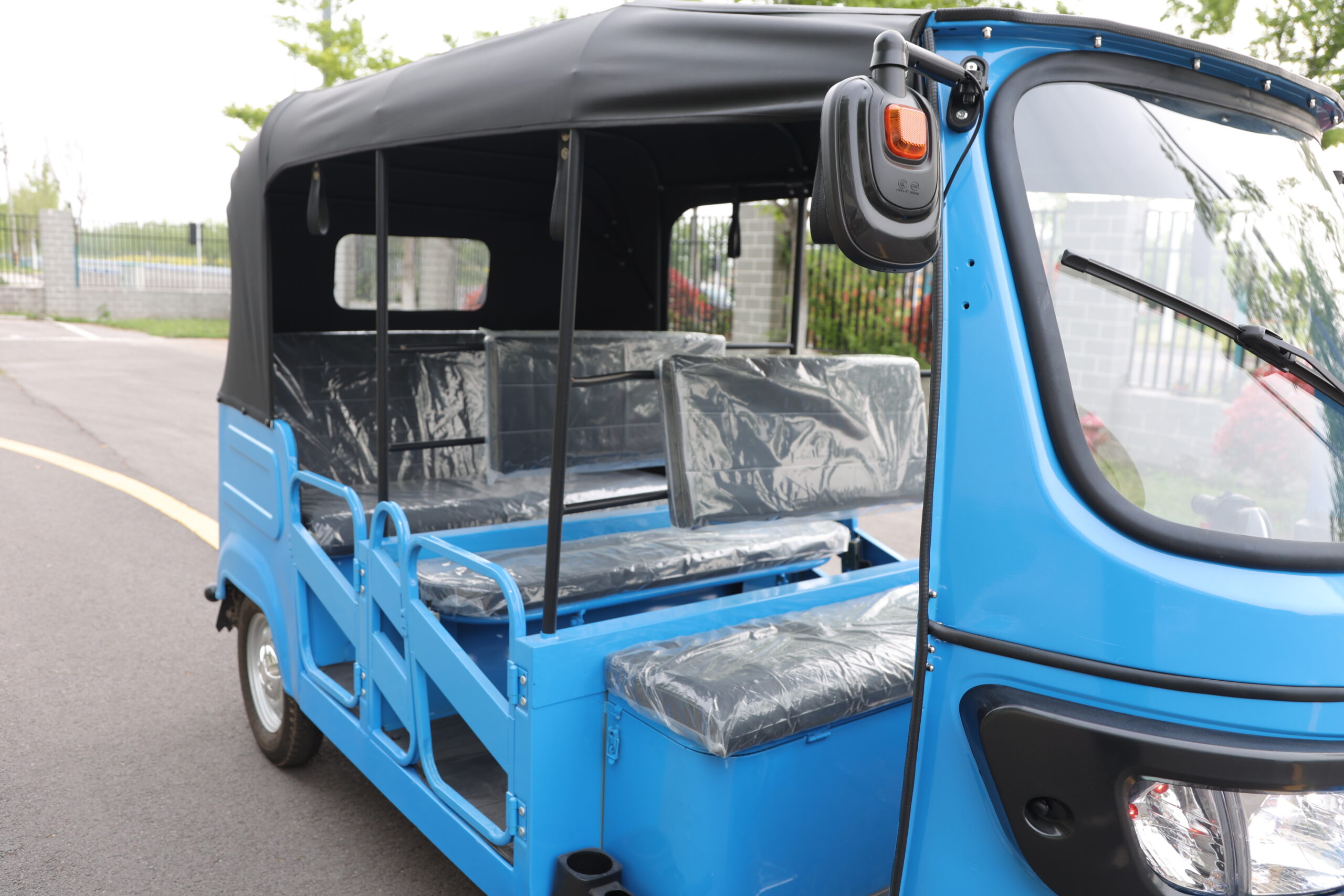

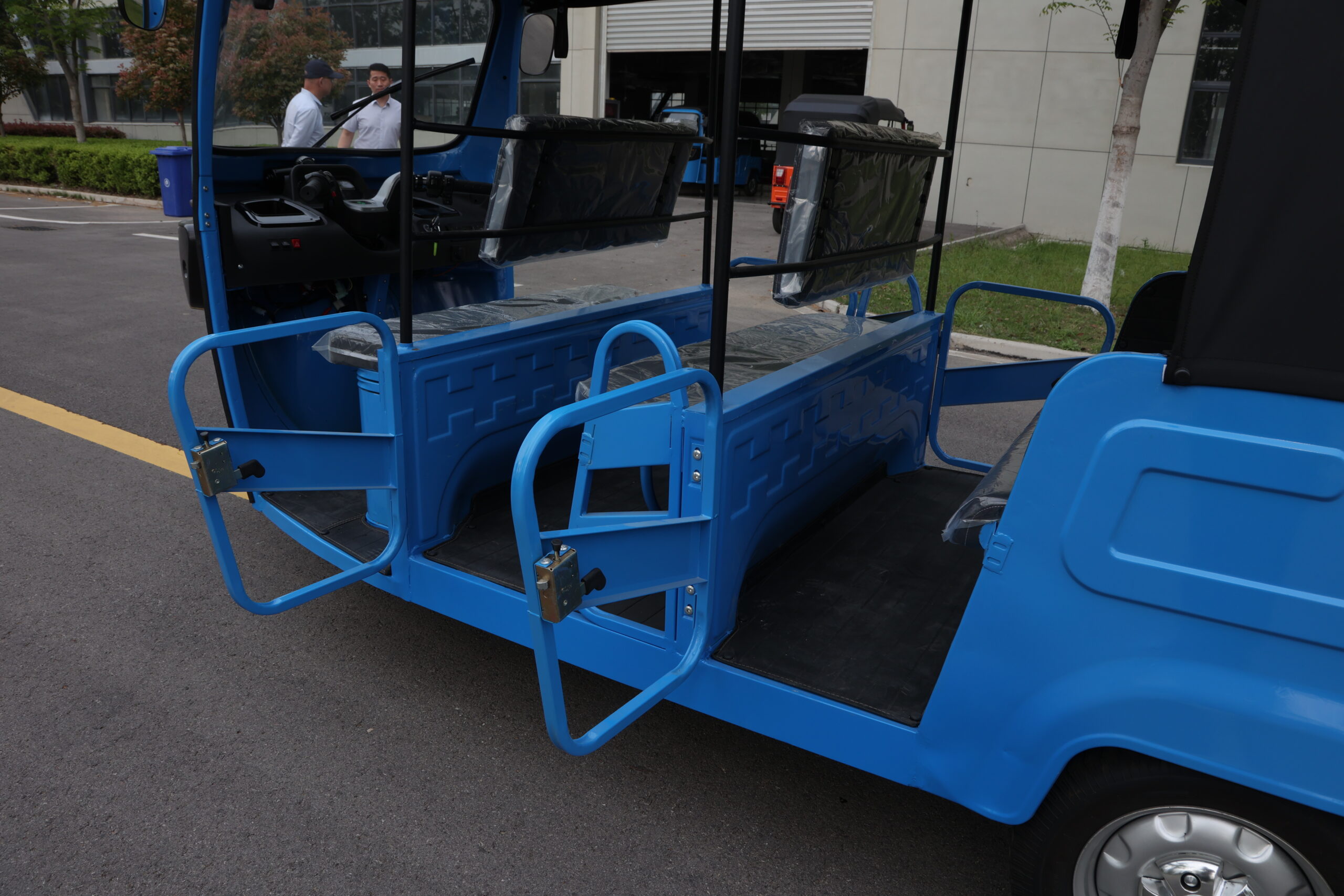

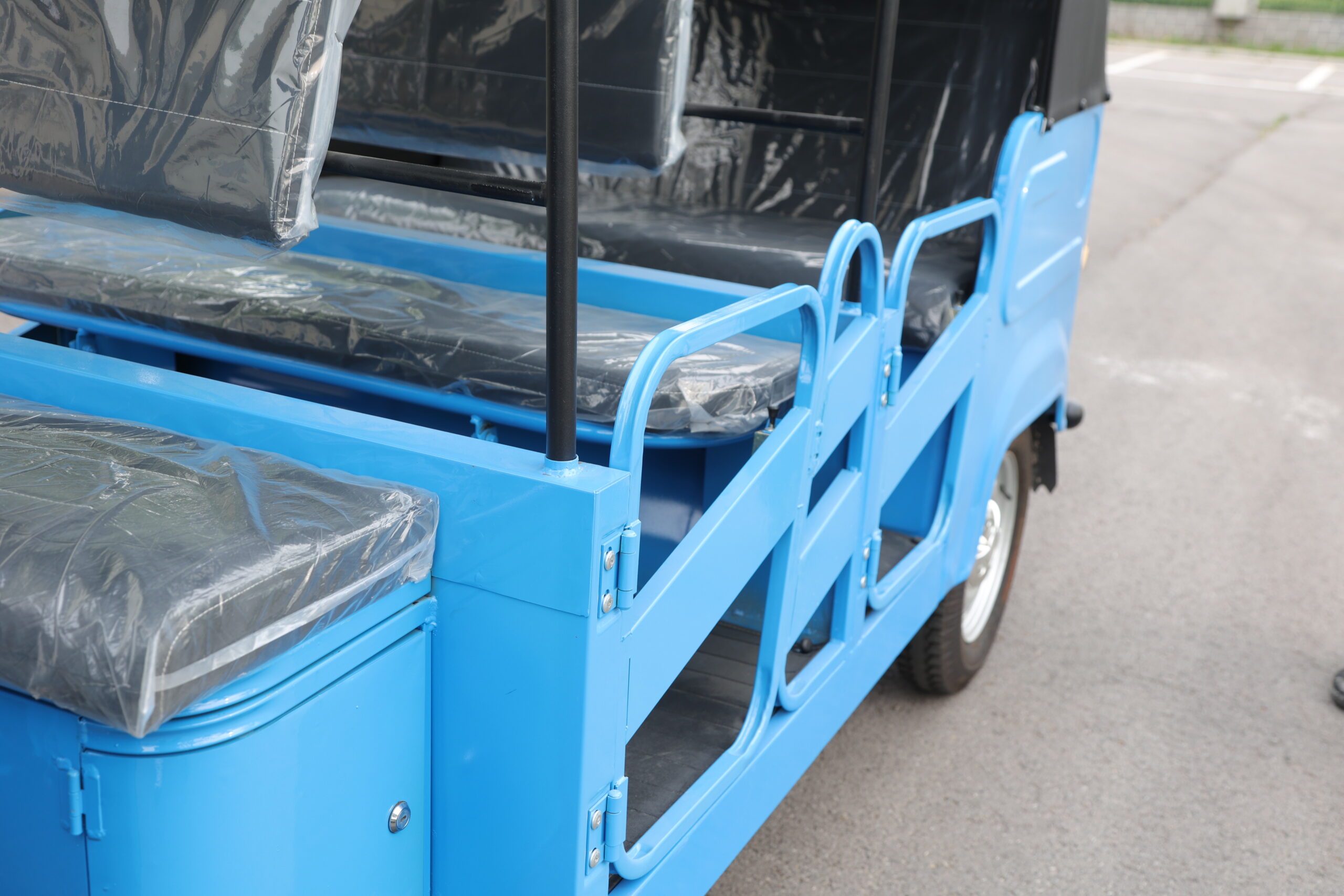

| Seat Rows | 3 |
| Occupants | 1+8 |
| Curb Weight | 370 kg |
| Maximum Load | 700 kg |
| Charging Time | 6–8 hours |
| Top Speed | 55–60 km/h |
| Braking Distance | 8 m |
| Gear Ratio | 10:1 |
Main Technical Parameters
| Item | Parameter |
|---|---|
| Dimensions (L × W × H) | 3300 × 1260 × 1820 mm (20–28 units per 40ft HQ container) |
| Brake Type | Front 180 / Rear 220 drum brake |
| Ground Clearance | 160 mm |
| Motor | Permanent magnet synchronous resolver motor |
| Controller | Permanent magnet synchronous resolver controller |
| Wheelbase | 2500 mm |
| Track Width | 1110 mm |
| Instrument Panel | TFT display + CAN/485 + reverse camera |
| Multimedia | USB / SD / radio / Bluetooth |

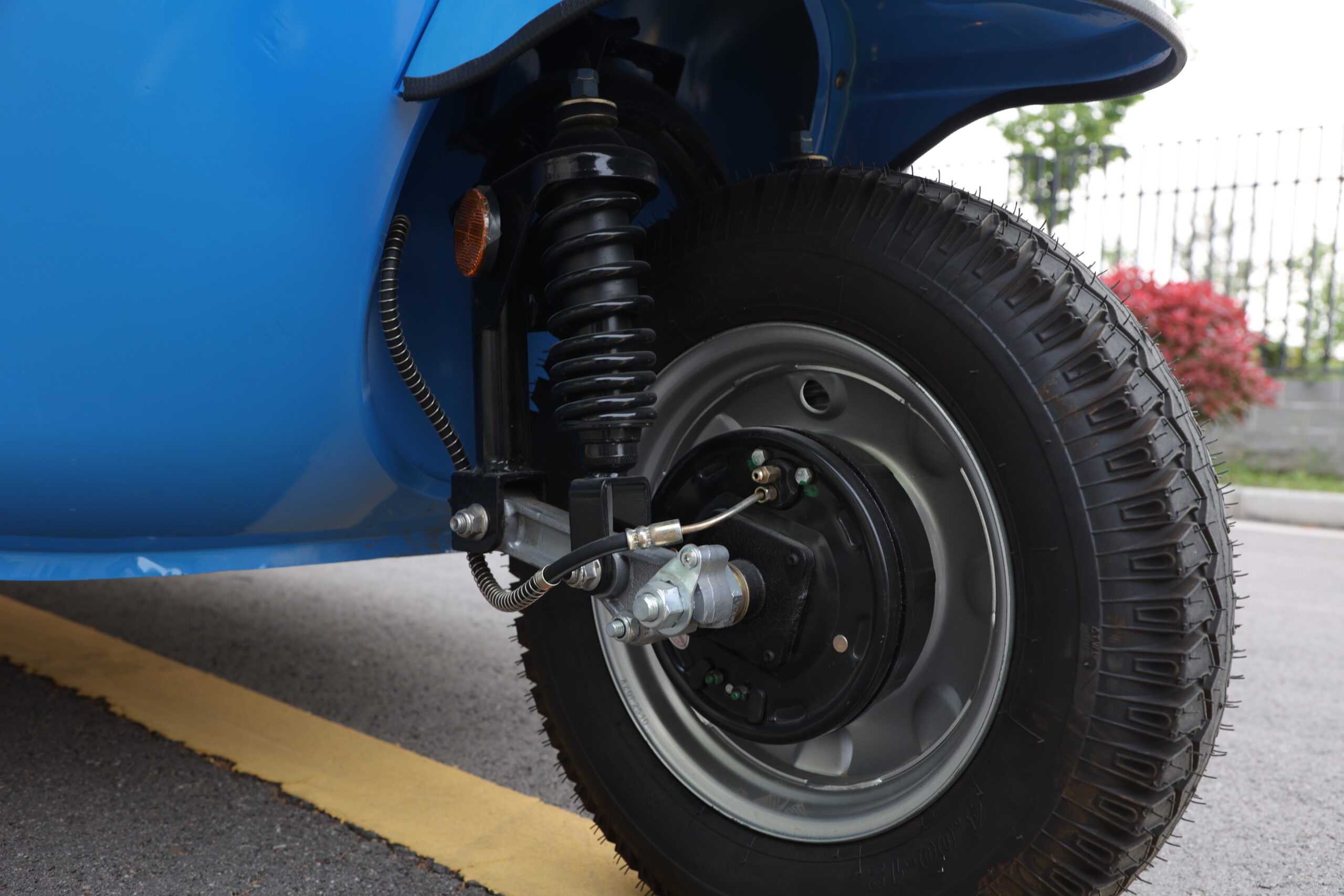

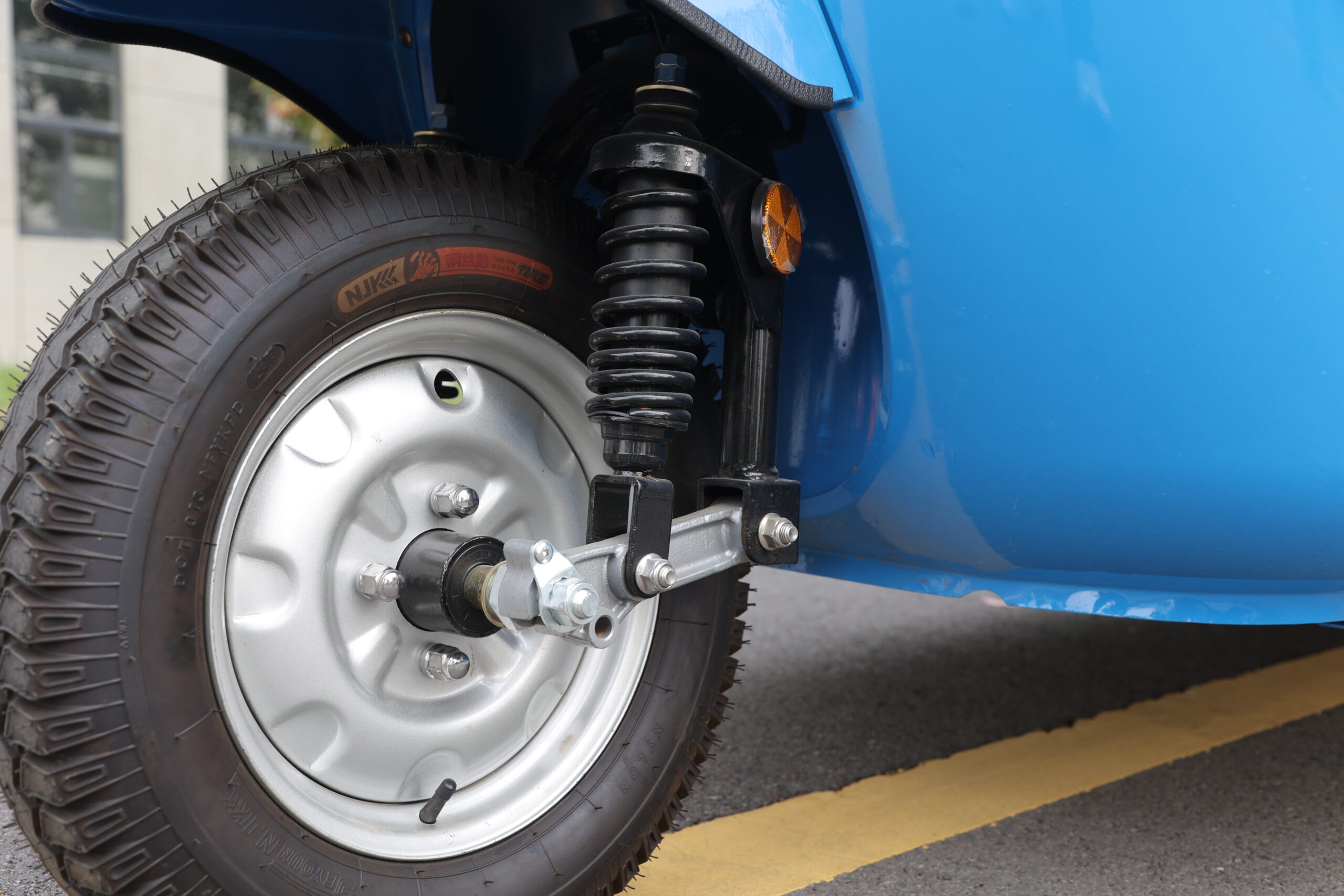

| Suspension | Front double rocker arm / Rear trailing arm |
| Wheels | 4.00-12 steel wheels |
| Tires | 4.00-12 8PR steel cord tires |

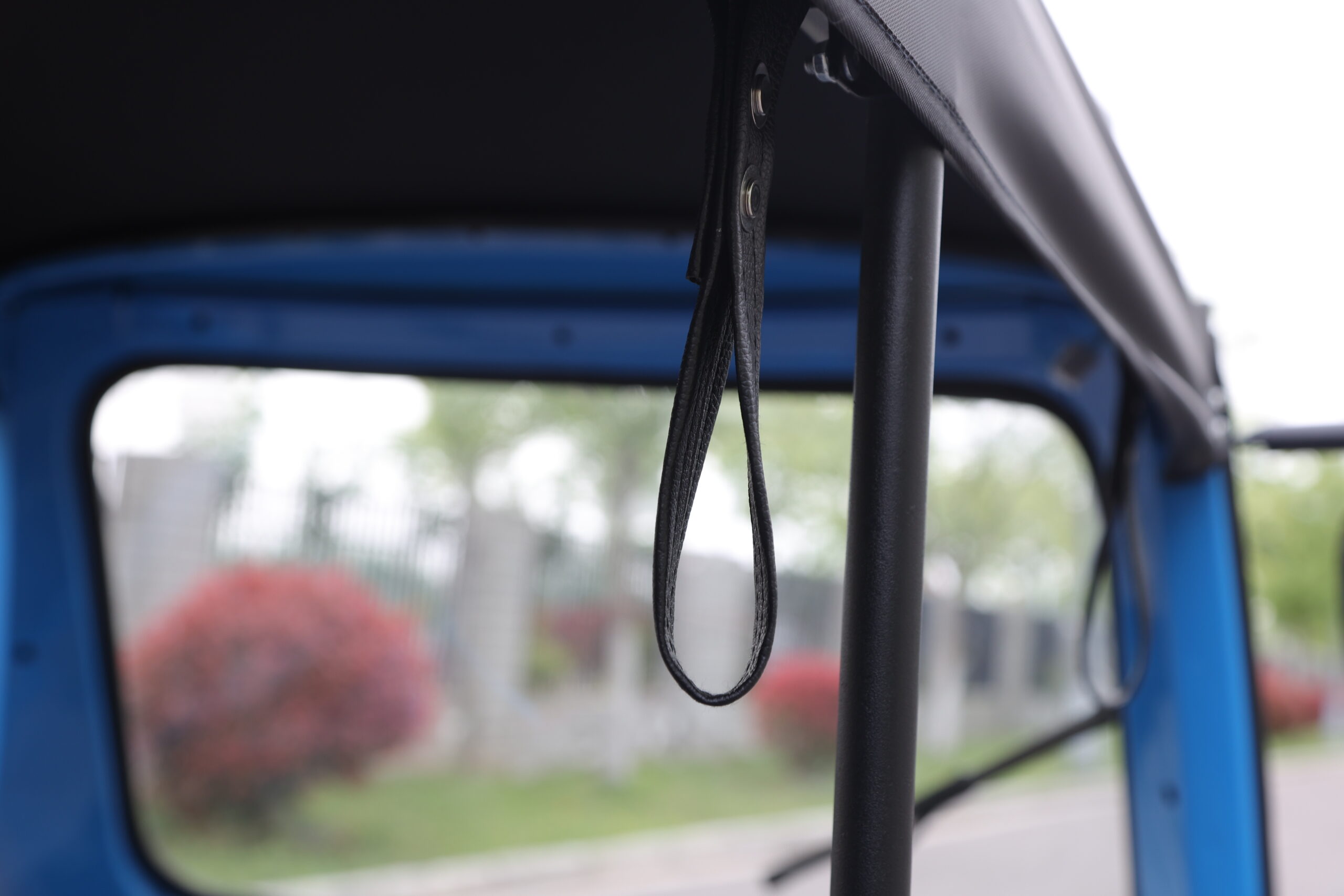

| Canopy | Framed canopy + leather + transparent rain curtain |
| Brake System | Hydraulic single pedal brake |

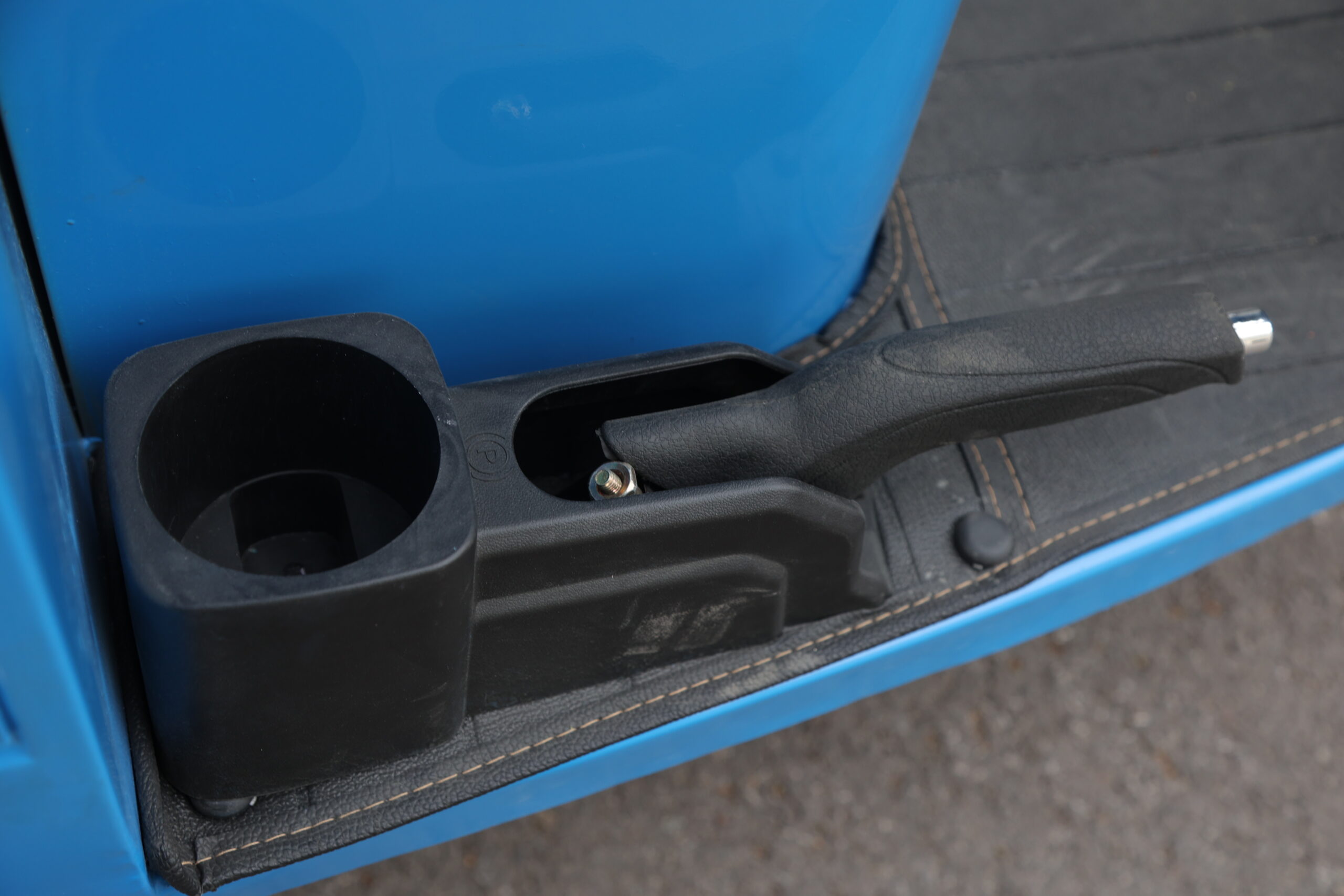

| Parking Brake | Foot brake + P gear |
Features
- Fog lights and reflectors for safety
- Rear door with anti-theft lock

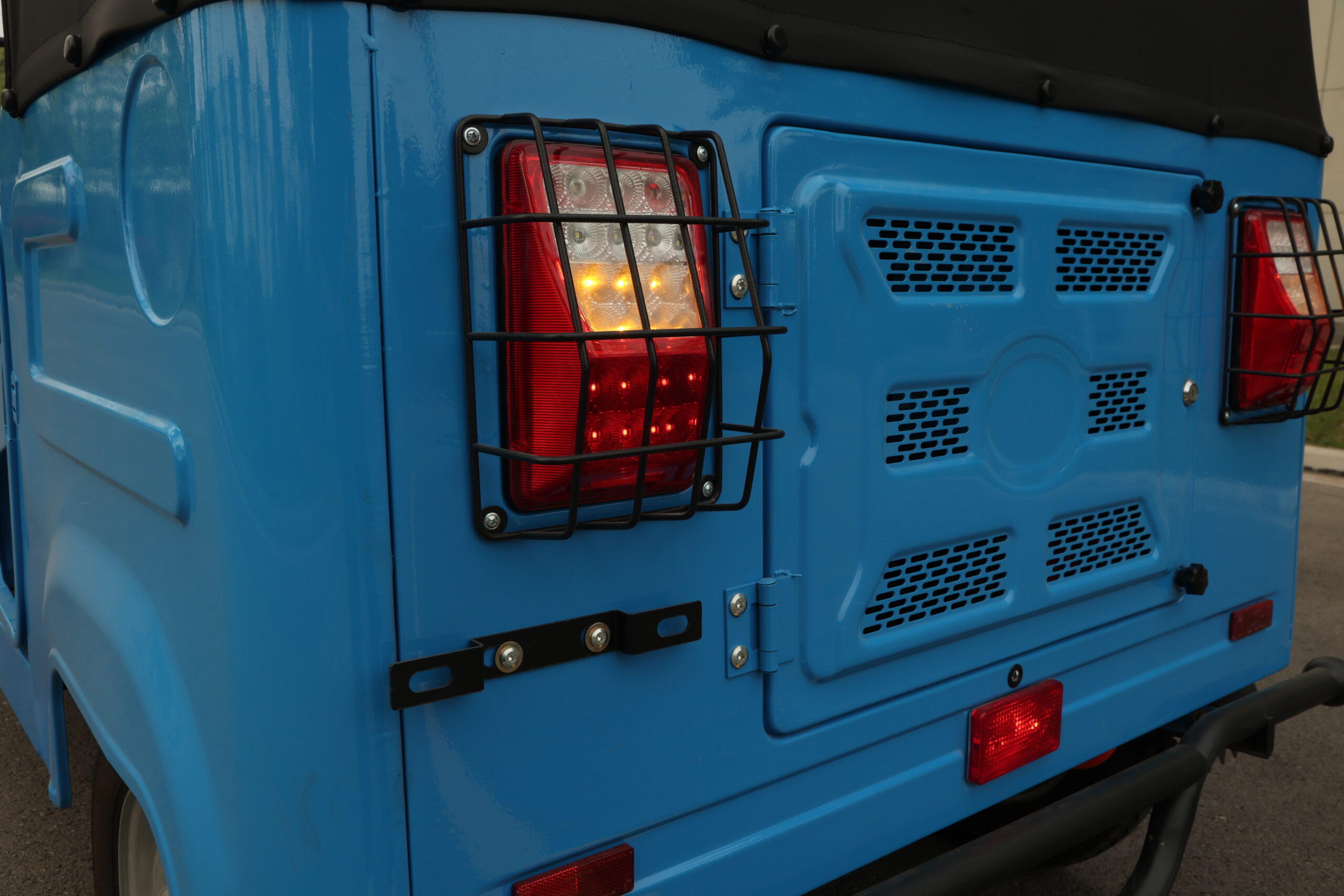

- BAIJI tail lights for African market
- Swappable battery system with quick release design
- High efficiency PMSM motor system
Customization Support
- 485 / CAN communication customization
- OEM / ODM support
- Hybrid extended range solutions
- Fast charging & battery swapping system
- Remote control + cloud platform system
- Custom mold development
- Battery swap ecosystem solutions
- Financing and project integration support
Traction Battery Selection Scheme
| No. | Battery Specification | Warranty | Type | Range |
|---|---|---|---|---|
| 1 | 73.6V 110Ah LiFePO4 (55kg) | 3 years | Software version | 90–110 km |
| 2 | 73.6V 125Ah LiFePO4 (61kg) | 3 years | Software version | 110–130 km |
| 3 | 73.6V 150Ah LiFePO4 (74.4kg) | 3 years | Software version | 130–150 km |
| 4 | Central Controller | Remote control + tracking system | System | Platform included |
| 5 | SIM Data Card | - | - | - |
| 6 | 72V40A Charging Gun + Socket | 13 months | Gun type | - |
| 7 | 72V30A Charging Gun + Socket | 13 months | Gun type | - |
| 8 | 72V20A Charging Gun + Socket | 13 months | Gun type | - |
| 9 | 72V15A Charging Gun + Socket | 13 months | Gun type | - |
| 10 | 72V12A Charger | 13 months | Plug-in | - |
| 11 | 72V20A Charger | 13 months | Plug-in | - |
| 12 | 72V25A Charger | 13 months | Plug-in | - |
| 13 | 72V35A Charger | 13 months | Plug-in | - |
