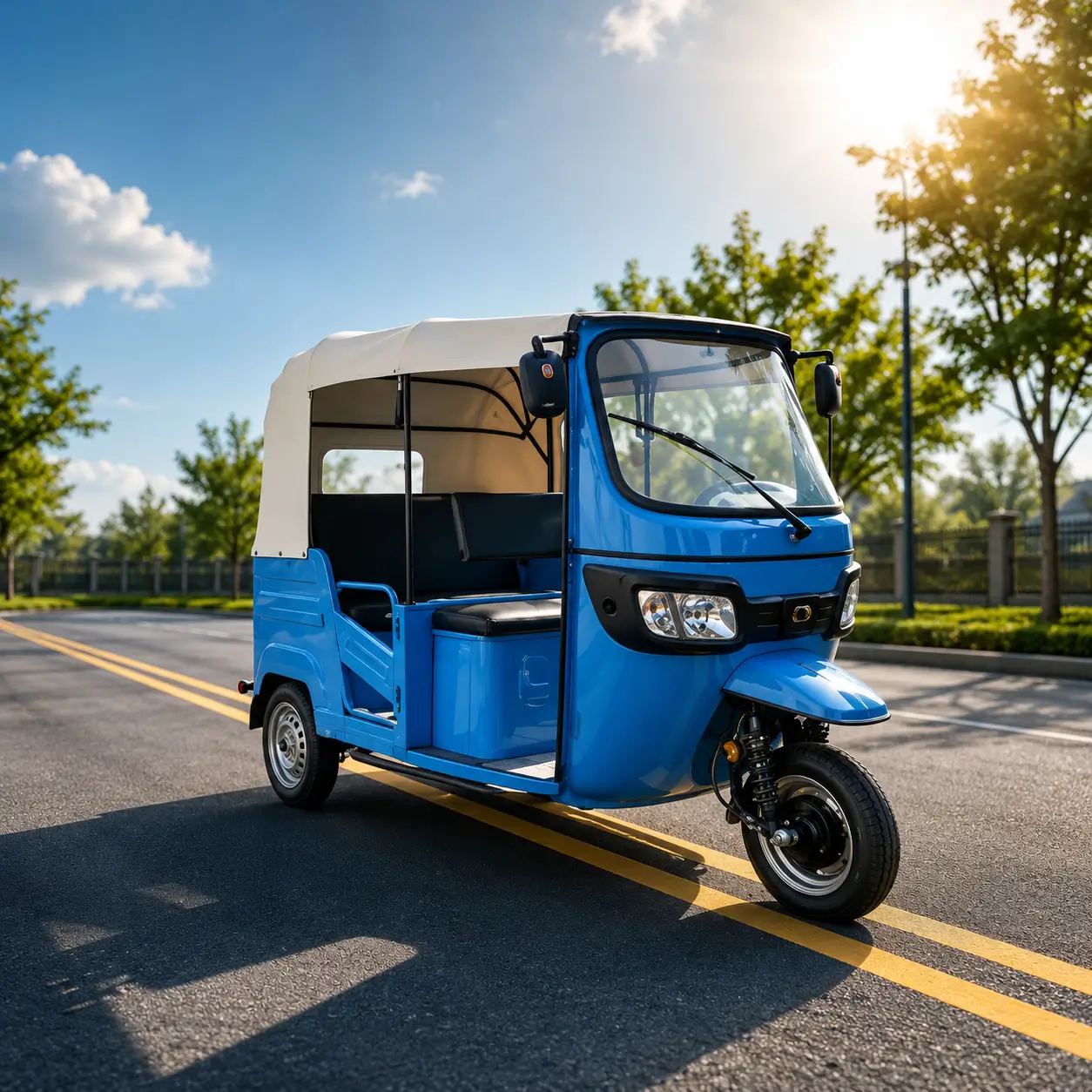

TUKTUK B6/S3-L26-V11 Tuk-tuk, 6 seats, two rows (seating in the same direction) Product Specifications [4.0 Chassis Solution + Battery Swapping]
Additional information
Description
Main Configuration
| Item | Configuration |
|---|---|

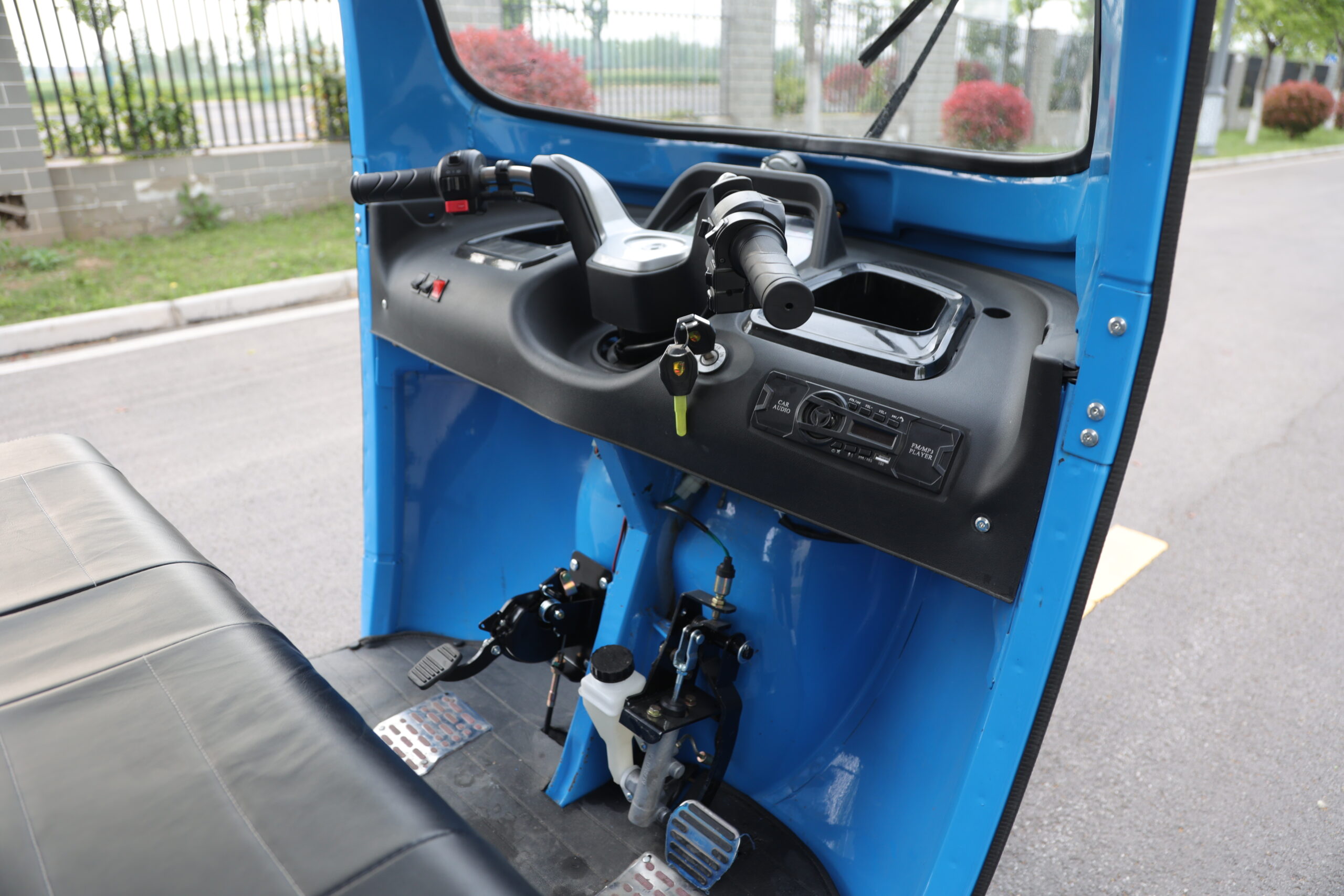

| Control Type | Handlebar type |
| Wiper | Single wiper (auto-reset) |
| Body Material | Stamped iron shell |
| Minimum Turning Radius | 3.2 m |

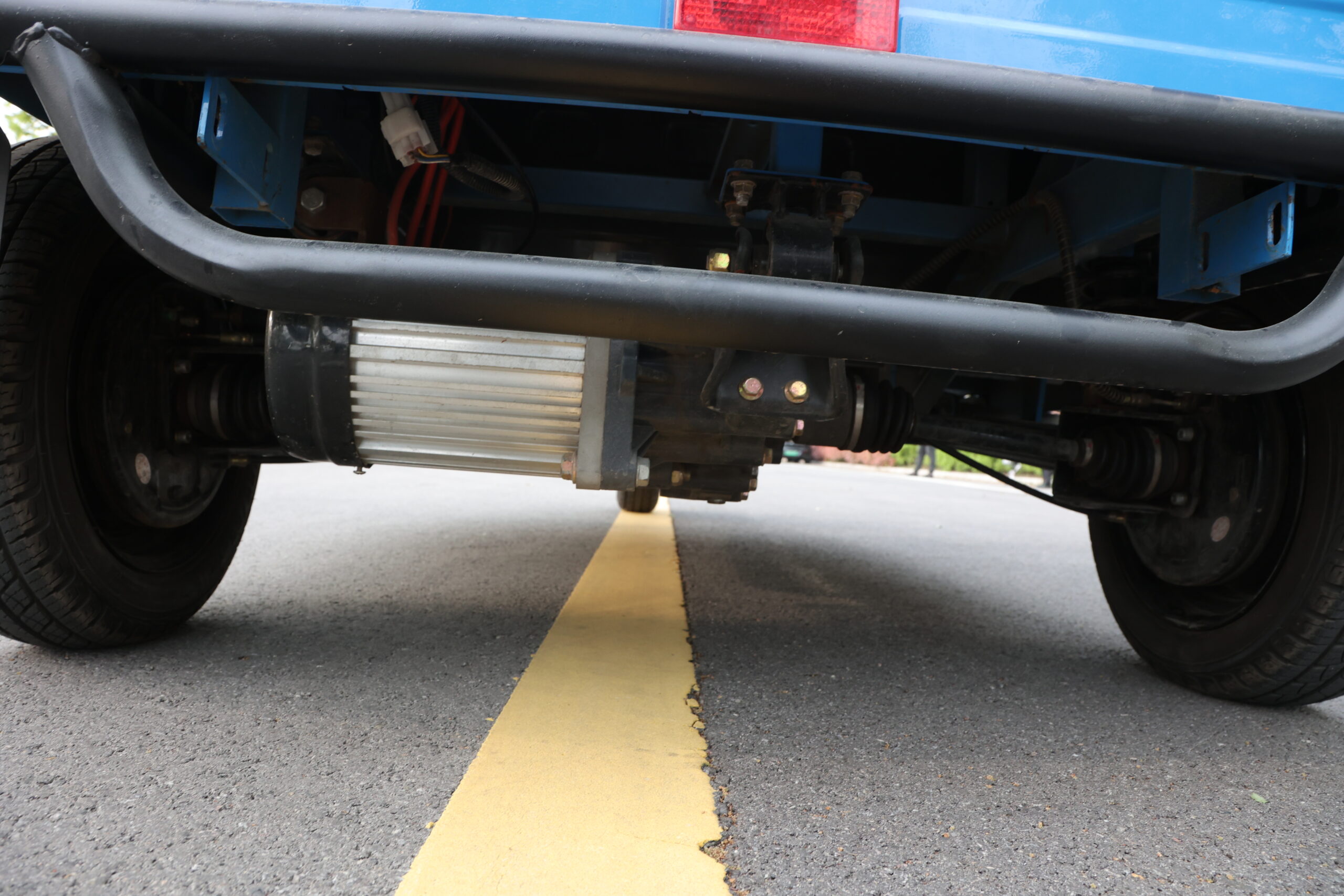

| Rear Axle | Constant velocity universal joint |

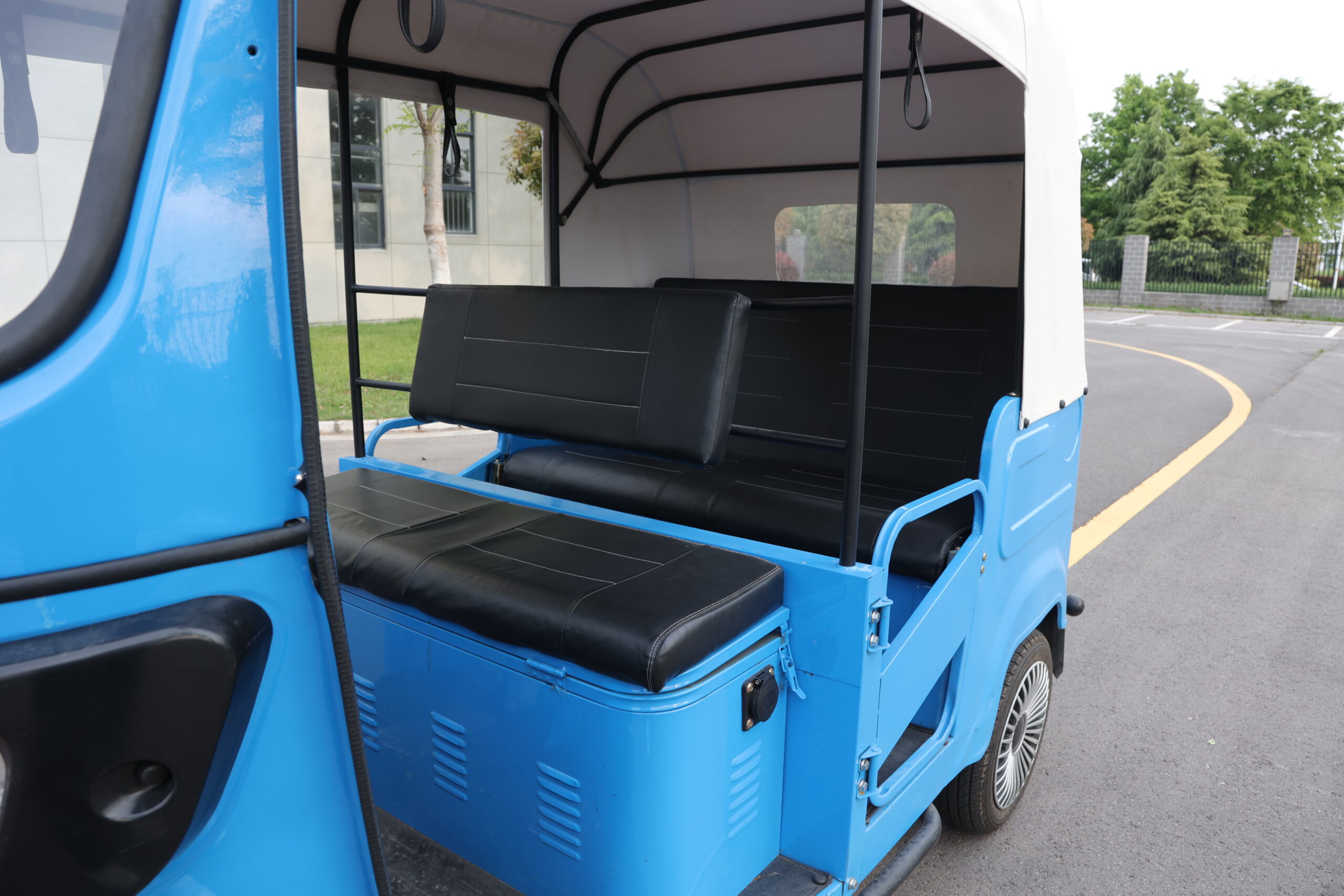

| Number of Seat Rows | 2 |
| Number of Occupants | 6 |
| Curb Weight | 340 kg |
| Maximum Load | 600 kg |
| Charging Time | 6–8 hours |
| Top Speed | 50–60 km/h |
| Braking Distance | 8 m |
| Gear Ratio | 8.3:1 |
Main Technical Parameters
| Item | Parameter |
|---|---|
| Length × Width × Height | 2650 × 1260 × 1750 mm (28 units per 40ft container) |

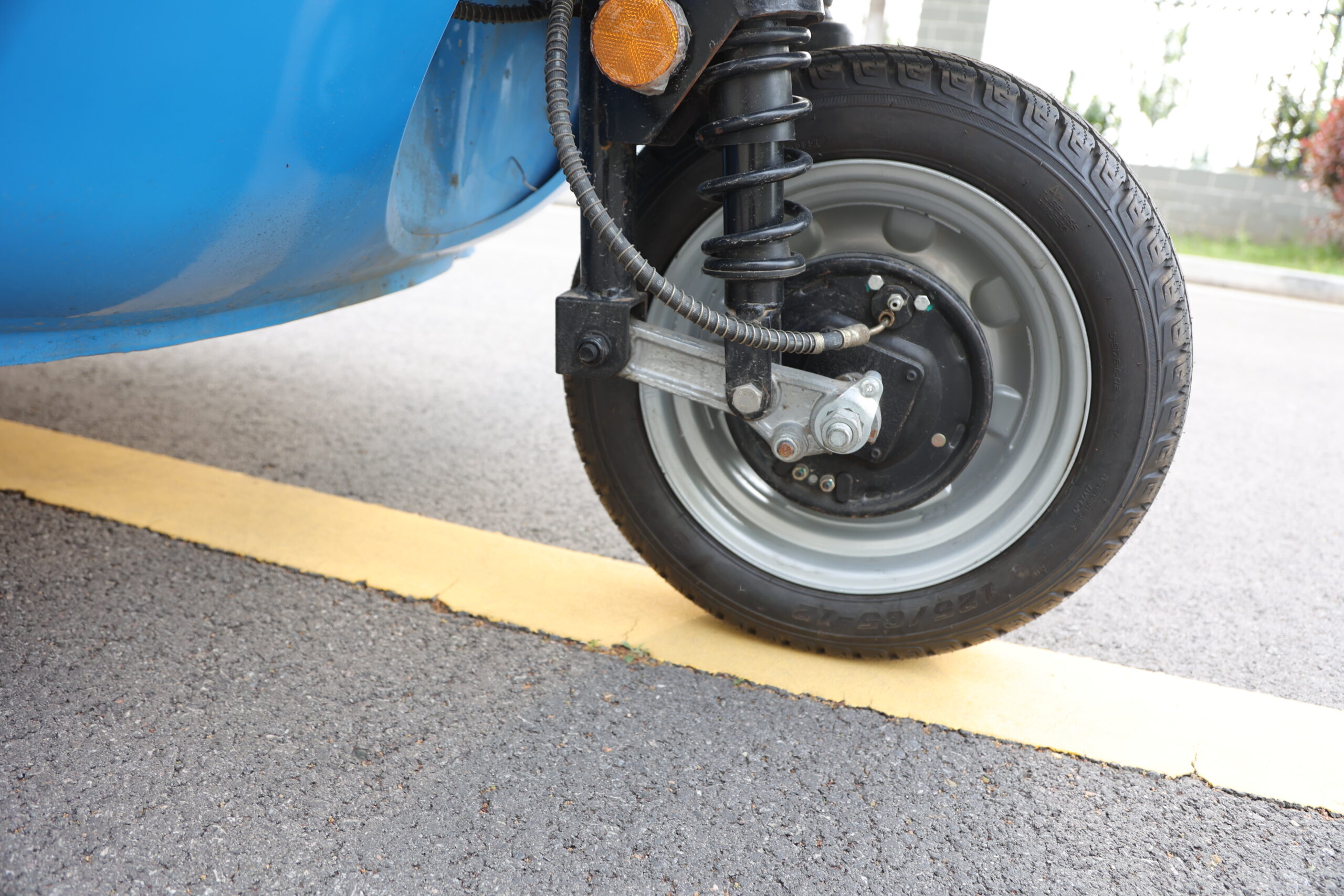

| Brake Type | Oil drum brake: Front 180, Rear 220 |
| Minimum Ground Clearance | 200 mm |
| Motor | Permanent magnet synchronous resolver solution |
| Controller | Permanent magnet synchronous resolver solution |
| Wheelbase | 2000 mm |
| Track Width | 1110 mm |
| Instrument Panel | TFT color screen + CAN/485 + reverse camera |
| Multimedia | USB, SD, radio, Bluetooth audio |
| Suspension |

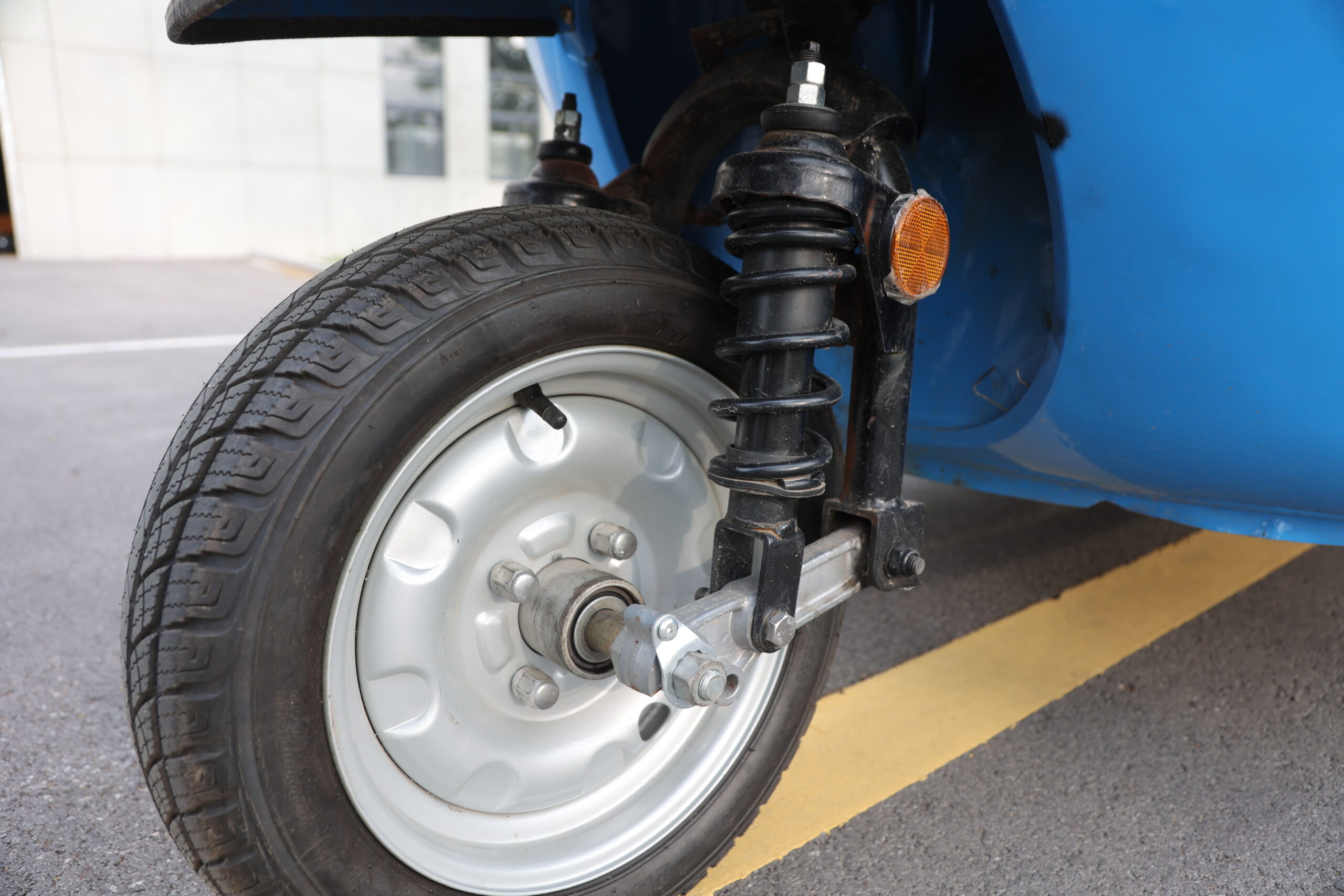

Front: Double rocker arm suspension Rear: Ball cage independent suspension |

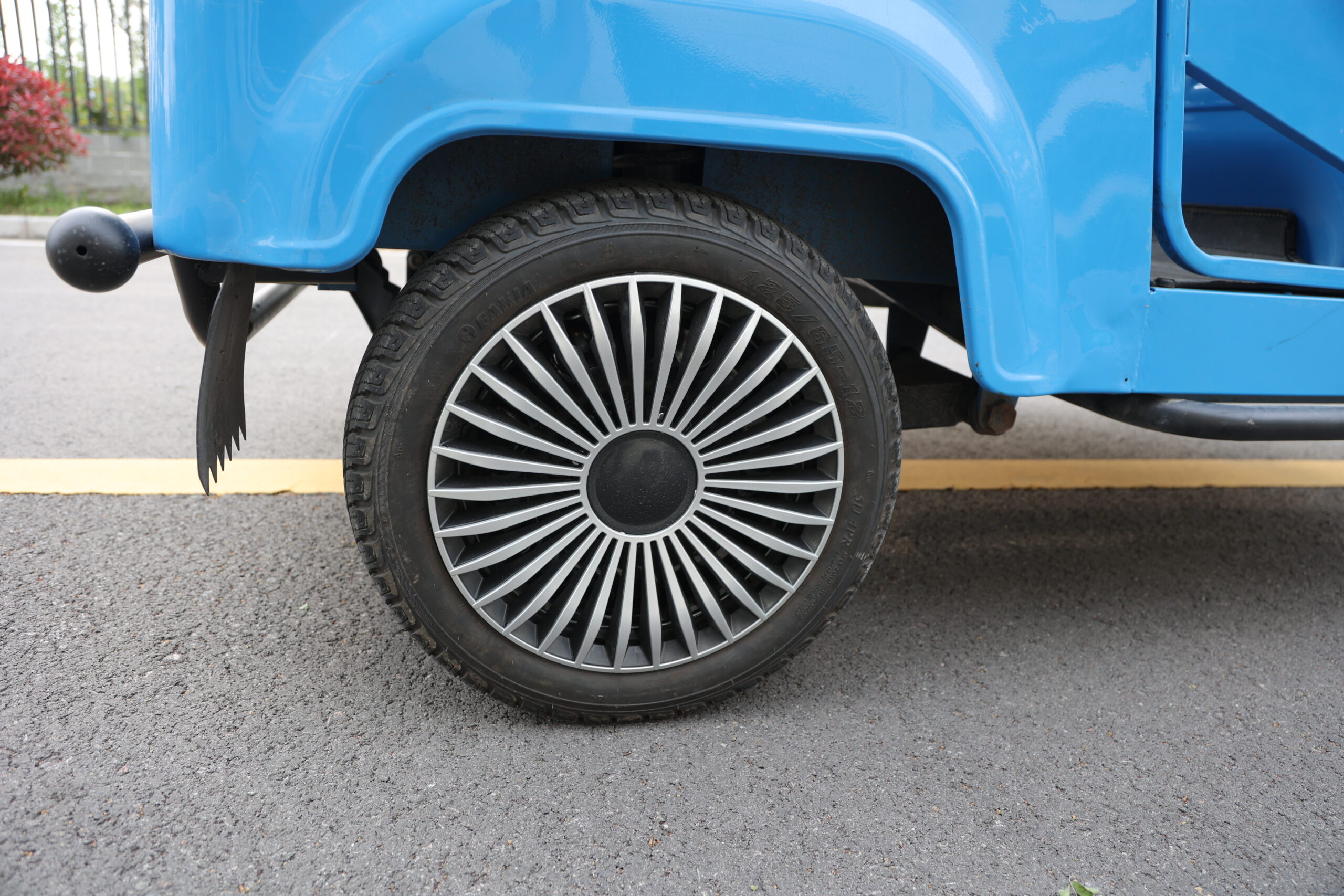

| Wheels | 125/65-12 steel wheels |
| Tires | 125/65-12 vacuum tires (3-wheel interchangeable) |

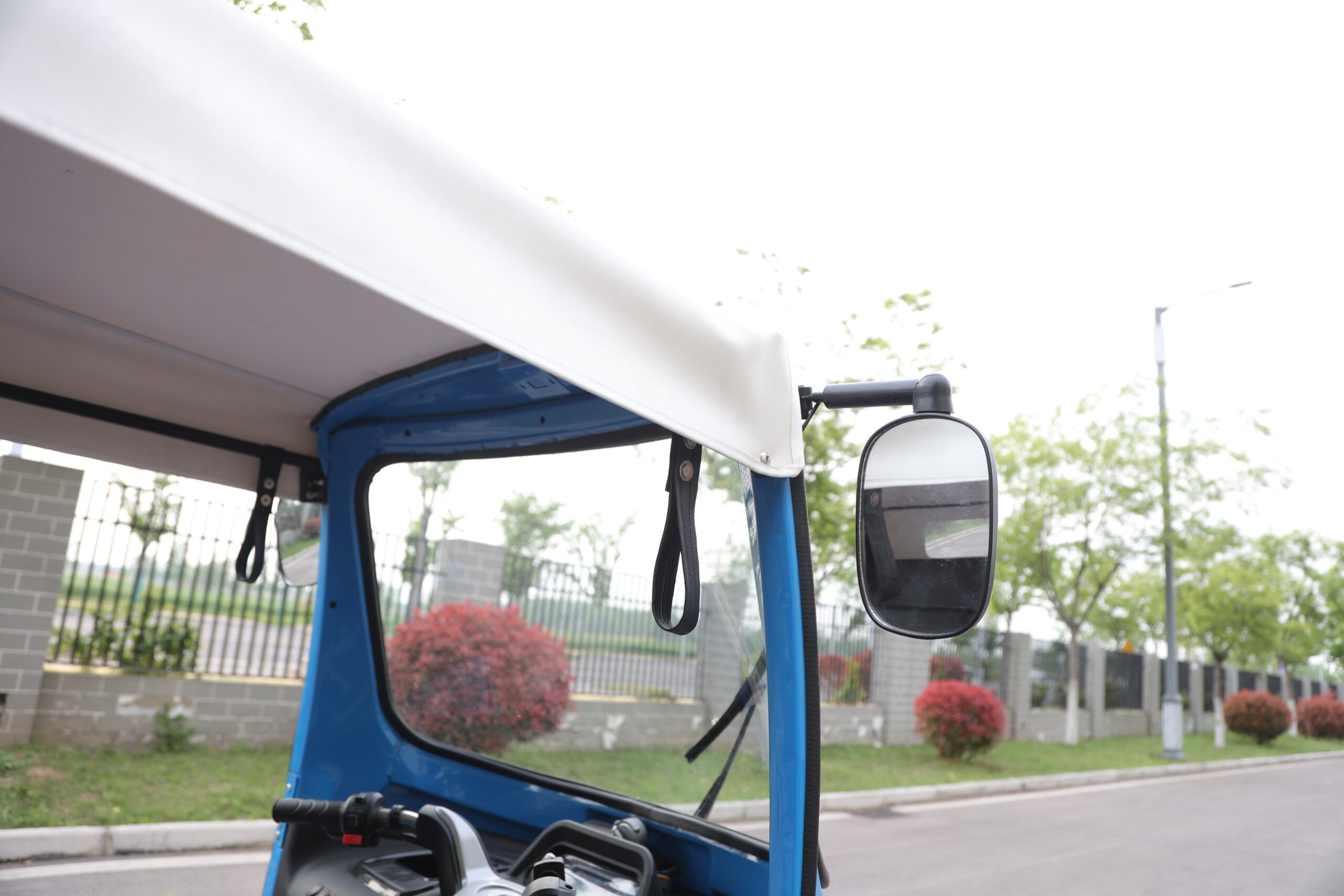

| Canopy | Framed canopy + thickened leather |
| Brake Application | Hydraulic single-pedal brake |
| Parking Brake | Foot brake + P gear |
Model Information
TUKTUK B6 / S3-L26-V11
6-seat, 2-row forward-facing tuk-tuk with battery swapping system. CE certified.
Features of This Model
- Fog lights, rear & side reflectors for safety.
- Rear door for spare tire/tools with anti-theft lock.
- Original BAIJI tail lights for African market preference.
- Swappable battery system with slide rails and quick clamp design.
- 50–60 km/h top speed with PMSM resolver system for efficiency and durability.
Customization Support
- 485 / CAN communication customization
- ODM / OEM support
- Hybrid extended range support
- Fast charging & battery swapping system integration
- Remote locking & cloud management
- Custom mold design & development
- Full battery swap ecosystem (solar, storage, charging, stations, vehicles)
- Financing & overseas project support
