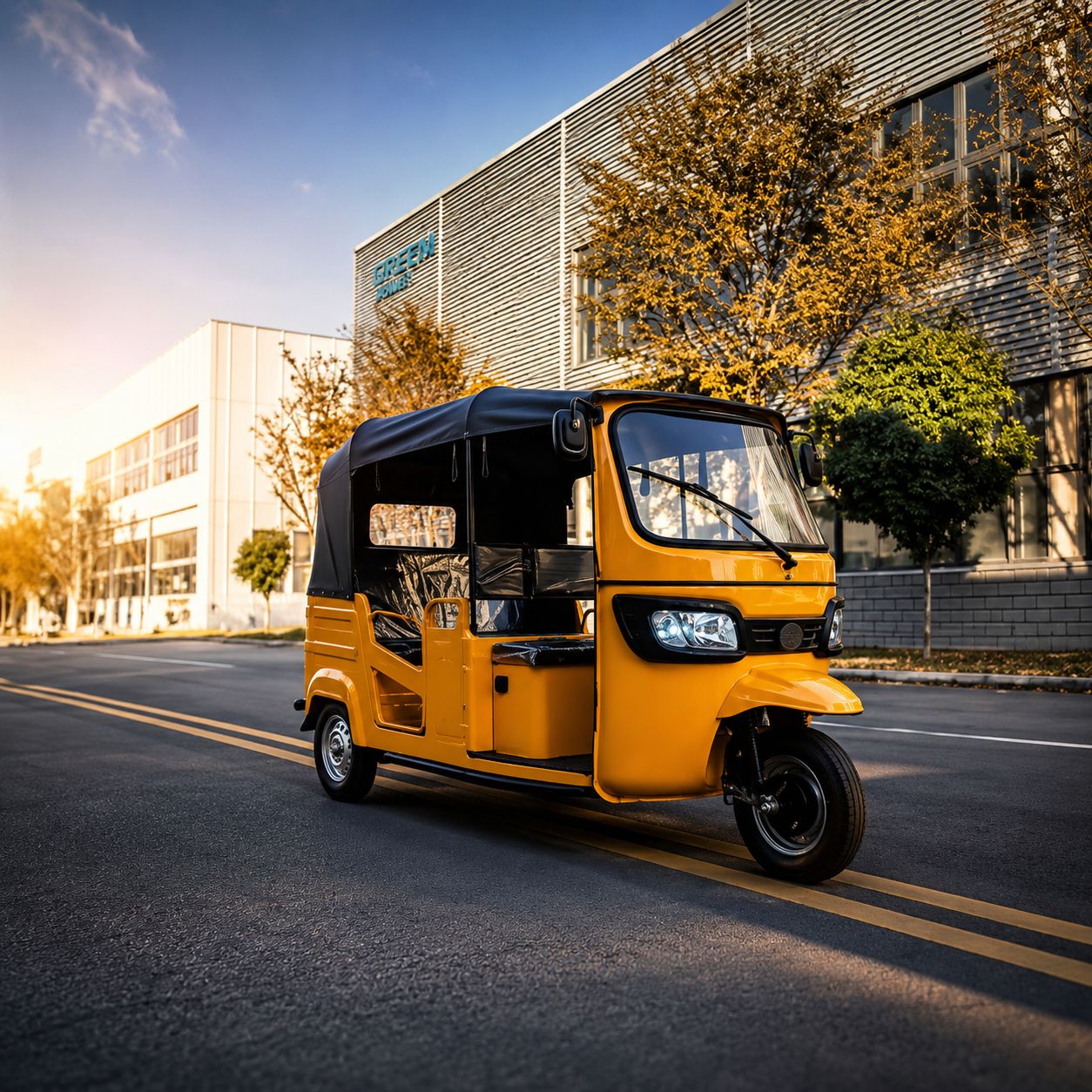

TUKTUK B9/H2-L26-V01 9-seater, three-row (face-to-face) [3.0 chassis solution + battery swapping + hybrid range extender solution]
Additional information
Description
Main Configuration
| Item | Configuration |
|---|---|
| Control Type | Handlebar type |
| Wiper | Single wiper (auto-reset) |
| Body Material | Stamped iron shell |
| Minimum Turning Radius | 4 m |
| Rear Axle | Straight axle rear drive |
| Number of Seat Rows | 3 |
| Number of Occupants | 1 + 8 |
| Curb Weight | 340 kg |
| Maximum Load | 700 kg |
| Charging Time | 6–8 hours |
| Top Speed | 50–70 km/h |
| Braking Distance | 8 m |
| Gear Ratio | 8.3:1 / 10:1 |
Main Technical Parameters
| Item | Parameter |
|---|---|
| Length × Width × Height | 2980 × 1260 × 1820 mm (28 CKD units per 40-foot high cube container) |
| Brake Type | Oil drum brake: Front 180, Rear 220 |
| Minimum Ground Clearance | 160 mm |
| Motor | Automotive-grade permanent magnet synchronous resolver solution |
| Controller | Automotive-grade permanent magnet synchronous resolver solution |
| Wheelbase | 2200 mm |
| Track Width | 1110 mm |
| Instrument Panel | Color screen instrument + CAN/485 communication |
| Multimedia | USB interface, SD, radio, Bluetooth audio |
| Suspension System |
Front: Double rocker arm Korean-style rocker arm suspension Rear: Trailing arm suspension |
| Wheels | 4.00-12 steel wheels |
| Tires | 4.00-12 steel cord 8PR tires, interchangeable on three wheels |
| Canopy | Framed canopy + thickened leather + double-sided rain curtain |
| Brake Application | Hydraulic single-pedal three-wheel brake |
| Parking Brake | Foot brake parking + P gear |
Features of This Model
- Equipped with fog lights, rear retro reflectors, and side retro reflectors for enhanced safety.
- Equipped with a rear door for convenient storage of spare tire and tools with anti-theft protection.
- Uses original BAIJI tail lights, preferred by African customers.
- Swappable battery compartment with side-pull access, battery slide rails, and quick-swap battery clamp for easy replacement.
- Automotive-grade permanent magnet synchronous resolver solution, top speed 50–70 km/h, improved comfort, lower failure rate, and better energy efficiency.
Customization Support
- Support 485/CAN communication customization
- Support ODM/OEM
- Support hybrid extended range
- Support smart fast charging, battery swapping, and cloud platform system development
- Support remote vehicle locking and cloud platform management
- Support custom mold design and development
- Support overseas battery swap operation systems including solar, storage, charging, stations, vehicles, batteries, cabinets, and grid systems
- Support financing and resource integration for overseas battery swap projects
Pt.3 Traction Battery Selection Scheme
| No. | Battery Specification | After-Sales Warranty | Type | Range |
|---|---|---|---|---|
| 1 |
73.6V 110Ah LiFePO4 Weight: 55 kg Size: 660 × 310 × 190 mm |
3 Years Warranty Year 1: Replacement Years 2–3: Free repair |
Software version (Export valid until Dec. 31, 2026) |
90–110 km |
| 2 |
73.6V 125Ah LiFePO4 Weight: 61 kg Size: 640 × 260 × 250 mm |
Same as above | Software version | 110–130 km |
| 3 |
73.6V 150Ah LiFePO4 Weight: 74.4 kg Size: 730 × 255 × 255 mm |
Same as above | Software | 130–150 km |
| 4 | Central Controller | Vehicle positioning, remote locking, and battery management | Management platform | - |
| 5 | SIM Data Card | - | - | - |
| 6 | 72V40A Charging Gun + YD60 Charging Socket | 13 months replacement warranty | Gun type | High-end EV charger |
| 7 | 72V30A Charging Gun + Charging Socket | Same as above | Gun type | - |
| 8 | 72V20A Charging Gun + Charging Socket | Same as above | Gun type | - |
| 9 | 72V15A Charging Gun + Charging Socket | Same as above | Gun type | - |
| 10 | 72V12A Charger (extruded aluminum shell) | 13 months replacement warranty | Plug-in type | Extruded aluminum shell charger |
| 11 | 72V20A Charger (extruded aluminum shell) | Same as above | Plug-in type | - |
| 12 | 72V25A Charger (extruded aluminum shell) | Same as above | Plug-in type | - |
| 13 | 72V35A Charger (extruded aluminum shell) | Same as above | Plug-in type | - |
