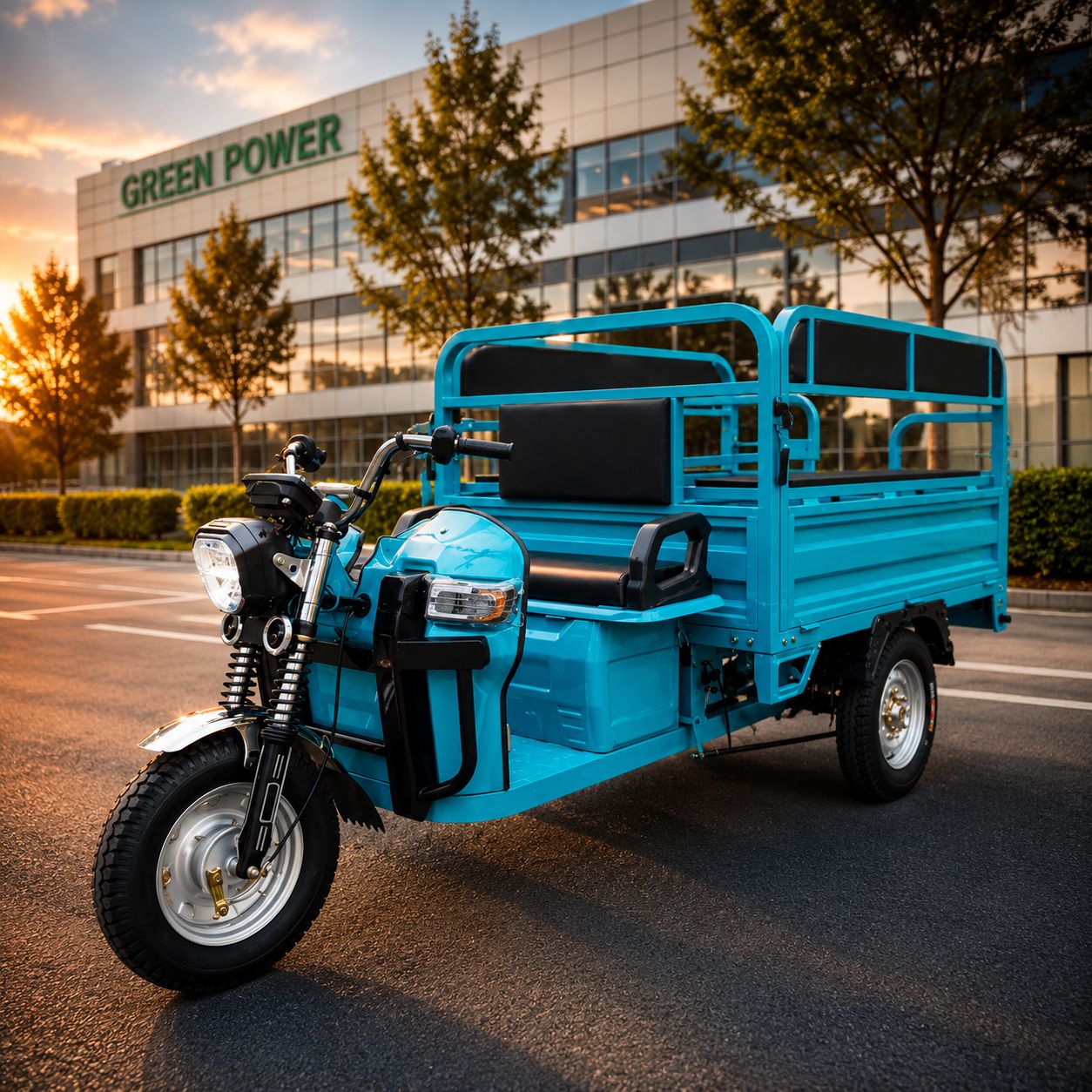

Dayang (Passenger/Cargo Version) JX-02 6-Seater (Face-to-Face) Product Specification Sheet [1.0 Chassis Solution]
Additional information
Description
Main Configuration
| Item | Configuration |
|---|---|
| Control Type | Handlebar type |
| Wiper | Single wiper (auto-reset) |
| Body Material | Cold plate stamping |
| Motor | Permanent magnet synchronous motor |
| Controller | Permanent magnet synchronous controller |
| Rear Axle | Integrated 180 full-floating variable gear rear axle |
| Instrument Panel | LCD instrument panel |
| Number of Seat Rows | 3 |
| Multimedia | N/A |
| Number of Occupants | 6–8 |
| Curb Weight | 280 kg |
| Maximum Load | 800 kg |
| Charging Time | 6–8 hours / optional |
| Top Speed | 50–55 km/h |
| Braking Distance | 8 m |
| Gear Ratio | Fast 9.6:1 / Slow 24:1 |
Main Technical Parameters
| Item | Parameter |
|---|---|
| Length × Width × Height | 3030 × 1280 × 1430 mm |
| Container Capacity | 50 CKD units per 40-foot high cube container |
| Brake Type | Drum brake: Front 130, Rear 180 |
| Minimum Ground Clearance | 150 mm |
| Minimum Turning Radius | 2.4 m |
| Wheelbase | 1960 mm |
| Track Width | 980 mm |
| Suspension |
Front: Hydraulic outer spring Rear: Leaf spring suspension |
| Wheels | Front/Rear: 4.00-12 steel wheels |
| Tires | Front/Rear: 4.00-12 8PR steel cord tires |
| Canopy | Iron roof 1.2 × 2.4 |
| Brake Application | Mechanical single-pedal three-wheel brake |
| Parking Brake | Handbrake parking + P gear |
Certification
This product has passed EU CE certification.
Remarks
- +2 and +3 are optional items; choose high-end or mid-range charging equipment according to requirements.
- Top speed is 50–55 km/h using a permanent magnet synchronous flat wire solution.
- The rear seats can be folded down for passengers or flipped up for cargo use.
Customization Support
- Support 485/CAN communication customization
- Support ODM/OEM
- Support hybrid extended range
- Support smart fast charging, fast battery swapping, and cloud platform system development
- Support remote vehicle locking and cloud platform management
- Support custom model mold design and development
- Support overseas battery swap operation management systems (solar, storage, charging, stations, vehicles, batteries, cabinets, and grid systems)
- Support financing and resource integration for overseas battery swap projects
