Jinan Dayang KDW-5 New Energy Automobile Co., Ltd.
Additional information
- Durable and Reliable Performance: This mini electric truck boasts a maximum speed of 40km/h, a minimum steering radius of 5m, and a maximum climbing ability of 20%, ensuring a smooth and efficient driving experience in various terrains.
- Long-Lasting Battery Life: The truck comes with a 60V or 72V lead-acid battery or lithium battery option, providing a working range of 80-100km, making it perfect for short to medium-distance deliveries or tasks.

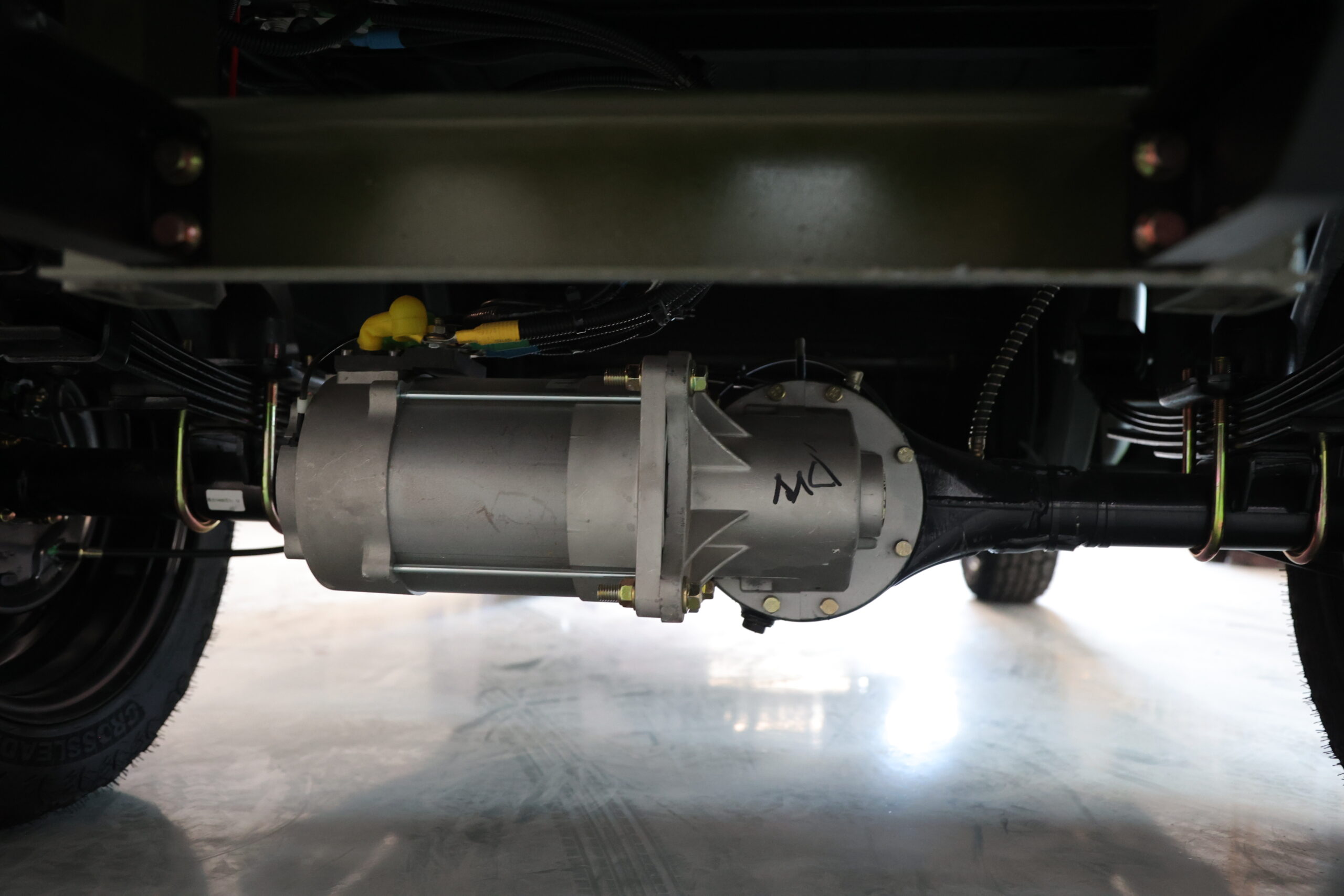

- Optional Motor and Battery Upgrades: Users can choose from a 72V 4kW or 5kW AC motor, allowing for customization to meet specific needs, and upgrade to a lithium battery for enhanced performance and durability.

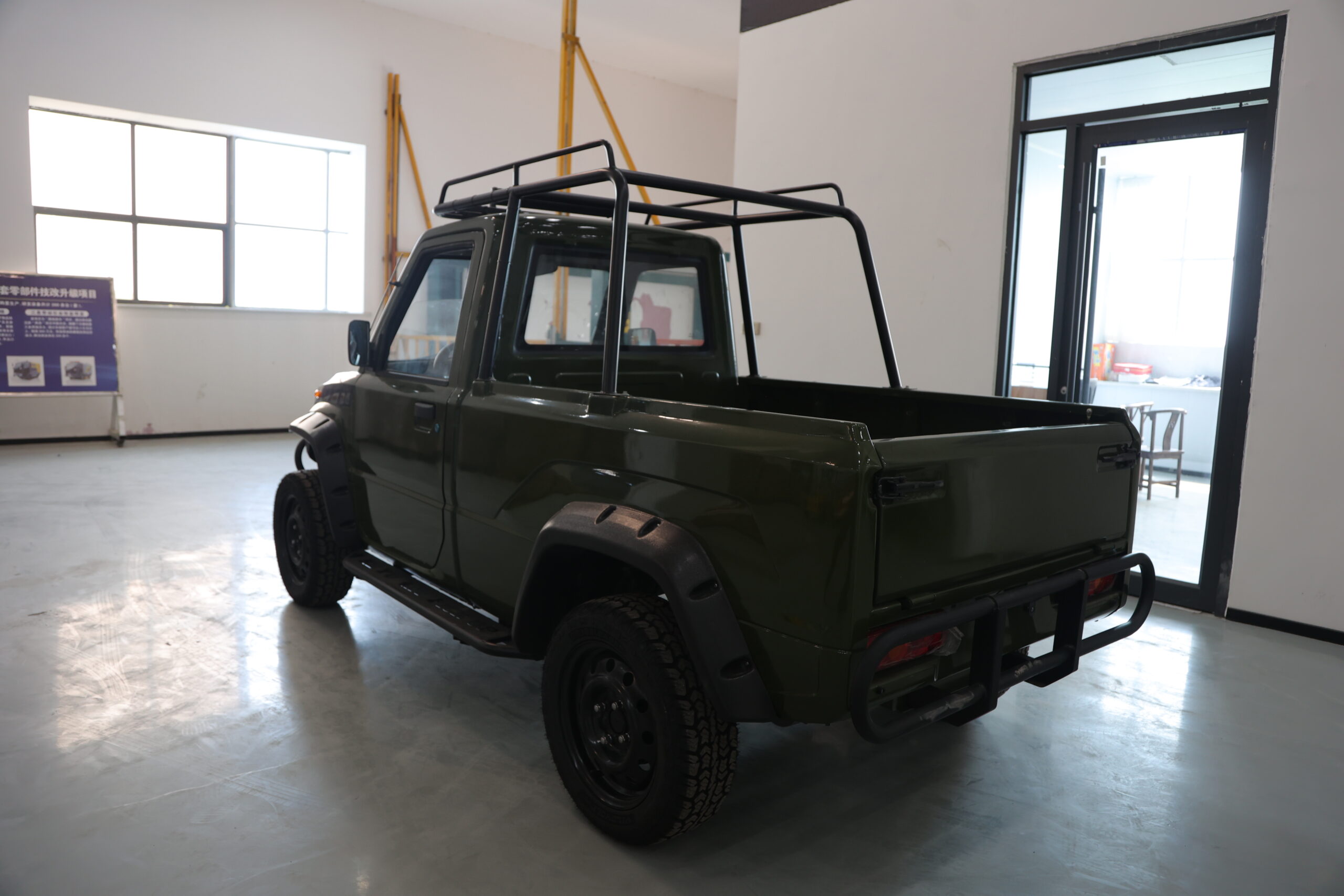

- Compact and Versatile Design: With dimensions of 3550x1450x1580mm and a carriage size of 1650x1320x300mm, this mini electric truck is ideal for navigating tight spaces and fitting into small storage areas.
- User-Friendly Features: This electric truck is designed with user convenience in mind, allowing users to easily customize the motor and battery to suit their specific requirements, such as for a user who needs to transport goods in a city with heavy traffic, or for a user who needs to transport goods in a hilly area.
Description
Basic Configuration
| Item | Specification | Item | Specification |
|---|---|---|---|
| Overall Size (mm) | 3650 × 1550 × 1850 / 1650 × 1300 × 340 | E-Motor | 4 kW / 5 kW AC Motor (Optional) |

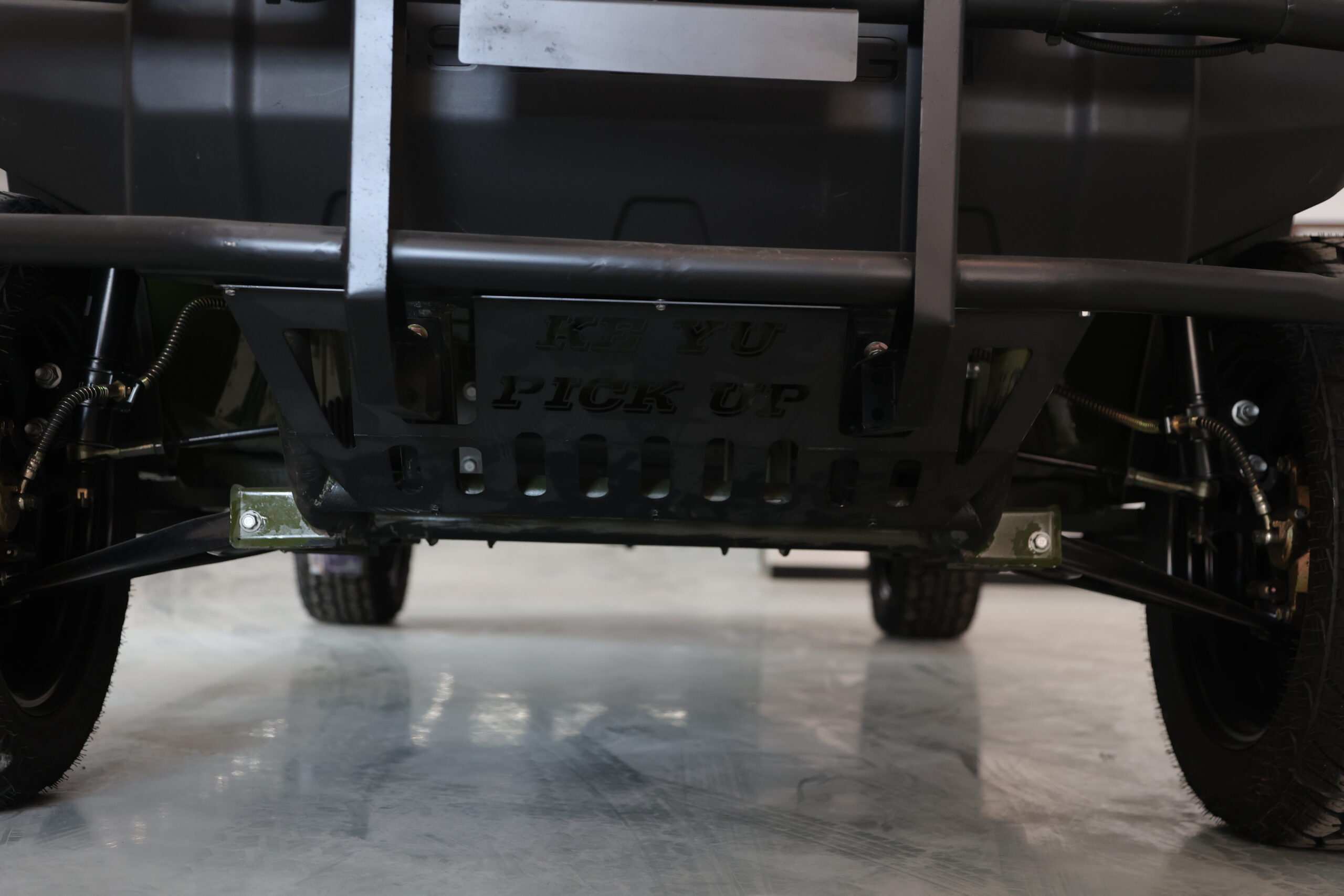

| Drive Mode | RR + FF | Vehicle Body Structure | MacPherson Strut Independent Suspension |
| Braking Method | Front Disc + Rear Drum + Vacuum Brake Booster | Maximum Speed | 50 km/h |

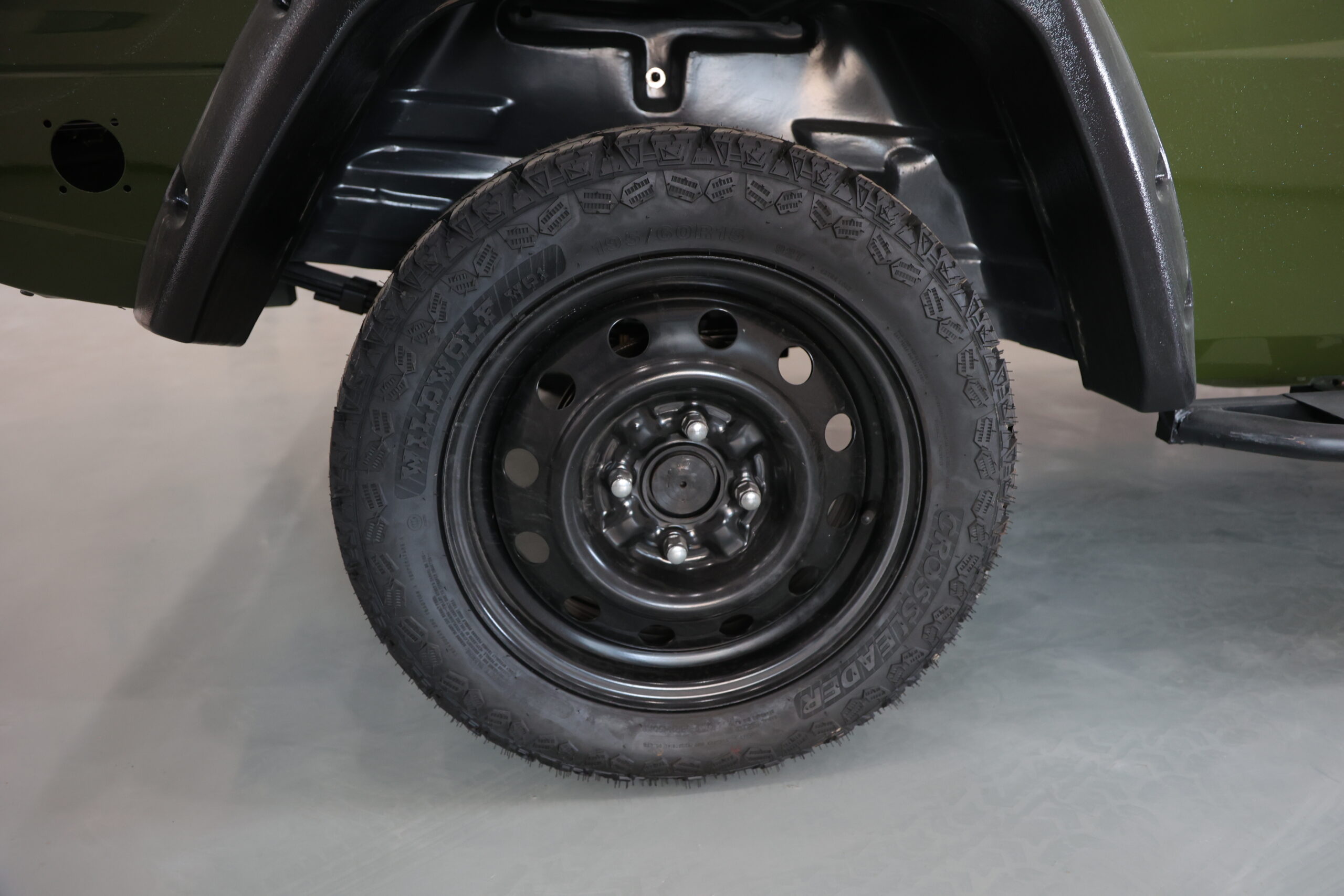

| Gradeability | 20° | Front & Rear Tires | 195/60R15 Tires |
| Wheel Track (mm) | 1340 / 1340 | Range per Charge | 80–100 km |
| Loading Capacity | 1000 kg | Battery | 72V Lead-acid or Lithium Battery |
| Ground Clearance (mm) | ≥140 | Charging Time | 5–10 Hours (Full Charge) |
| Wheelbase (mm) | 2730 | Weight (kg) | 592 kg (excluding battery) |
| 40HQ Container Loading | — | — | — |
